N E W G E N E R A T I O N ® C A B L E
Security and Alarm Cable
Commercial Applications
Unshielded
Cable Belden para Seguridad y Alarma, Aplicaciones Comerciales, Cable No Blindado
Números de Parte:

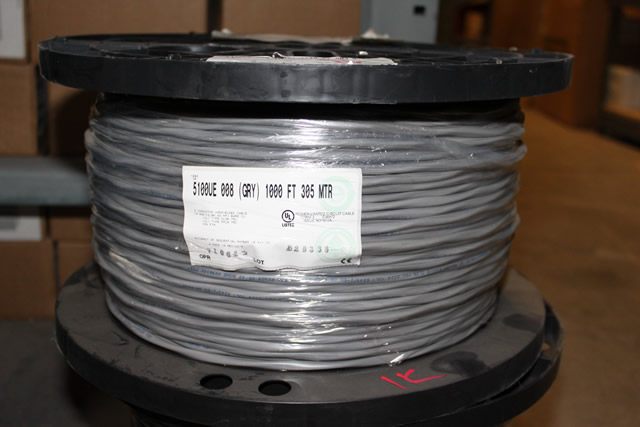

5520UE, 5500UE, 5501UE, 5522UE, 5582UE, 5502UE, 5503UE, 5524UE, 5504UE, 5504UE, 5526UE, 5506UE, 5508UE, 5529UE, 5509UE, 5400UE, 5401UE, 5402UE, 5403UE, 5405UE, 5406UE, 5407UE, 5408UE, 5409UE, 540BUE, 5320UE, 5300UE, 5321UE, 5301UE, 5322UE, 5302UE, 5303UE, 5304UE, 5305UE, 5306UE, 5307UE, 5308UE, 5309UE, 530BUE, 5200UE, 5201UE, 5202UE, 5205UE, 5100UE, 5101UE, 5102UE, 5000UE, 5001UE.
Catálogo y Hoja Técnica:
http://www.belden.com/products/catalogs/mastercatalog/brilliance/upload/20-8_27.pdf
Video de Cables Belden:
Unshielded Multi-conductor
CMR/CMG FT4 Rated Part No. of
No. Cond.
Product Description
Bare copper conductors, PVC insulation, Gray PVC
jacket with rip cord. Sequential footage marking every two feet.
Color Code: See chart below.
Specifications
Conductor Bare Copper
Insulation PVC
Insulation Thickness .010″ (.254mm)
Unshielded Multi-conductor (NEC CMR and CEC CMG FT4)
22 AWG
5520UE 2 solid C-500 C-152 4.0 1.8 .015 .38 .122 3.10
U-500 U-152 5.5 2.5
C-1000 C-305 8.0 3.6
U-1000 U-305 9.0 4.1
1000 305 9.0 4.1
5500UE 2 7 C-500 C-152 4.0 1.8 .015 .38 .128 3.25
U-500 U-152 5.5 2.5
500 152 5.5 2.5
C-1000 C-305 8.0 3.6
U-1000 U-305 10.0 4.5
1000 305 9.0 4.1
Jacket PVC
Approvals
NEC CMR
CEC CMG FT4
NEC Articles 800
Voltage Rating 300V
Temperature Rating 75°C
Applications
• Security Systems
• Intercom/PA Systems
5501UE 3 7 U-1000
1000
5522UE 4 solid U-1000
1000
5582UE* 4 solid C-500
U-500
U-1000
1000
5502UE** 4 7 C-500
U-500
U-1000
1000
5503UE 5 7 U-1000
1000
U-305 13.0 5.9 .015 .38 .135 3.43
305 13.0 5.9
U-305 16.0 7.3 .015 .38 .141 3.58
305 16.0 7.3
C-152 7.0 3.2 .015 .38 .141 3.58
U-152 6.5 3.0
U-305 12.0 5.5
305 12.0 5.5
C-152 7.5 3.4 .015 .38 .148 3.76
U-152 9.0 4.1
U-305 16.0 7.3
305 16.0 7.3
U-305 20.0 9.1 .015 .38 .162 4.11
305 20.0 9.1
• Sound/Audio Systems
• Power-Limited Controls
• Single Line Telephone
Solid Conductor
5524UE 6 solid C-500
1000
5504UE** 6 7 C-500
U-500
500
U-1000
1000
C-152 10.5 4.8 .015 .38 .168 4.27
305 22.0 10.0
C-152 12.5 5.7 .015 .38 .177 4.50
U-152 14.0 6.4
152 13.5 6.1
U-305 27.0 12.3
305 27.0 12.3
5526UE 8 solid 1000 305 28.0 12.7 .015 .38 .182 4.62
5506UE 8 7 U-1000 U-305 29.0 13.2 .015 .38 .192 4.88
1000 305 30.0 13.6
5508UE 10 7 U-1000 U-305 36.0 16.3 .015 .38 .226 5.74
1000 305 41.0 18.6
Stranded Conductor
5529UE 12 solid U-1000
1000
U-305 40.0 18.1 .015 .38 .221 5.61
305 42.0 19.1
5509UE 12 7 U-500 U-152 21.5 9.8 .015 .38 .233 5.92
U-1000 U-305 42.0 19.1
1000 305 47.0 21.4
20 AWG
5400UE 2 7 C-500 C-152 6.0 2.7 .015 .38 .142 3.61
U-1000 U-305 13.0 5.9
1000 305 13.0 5.9
5401UE 3
Color Code Chart ††
7 500 152 9.0
U-1000 U-305 18.0
1000 305 18.0
4.1 .015 .38 .150 3.81
8.2
8.2
Cond. No. Color Cond. No.
1 Black 11
2 Red 12
3 White 13
Color 5402UE 4
Pink
Tan 5403UE 5
White/Black
7 C-500 C-152 10.5
U-1000 U-305 23.0
1000 305 23.0
7 U-1000 U-305 27.0
1000 305 28.0
4.8 .015 .38 .165 4.19
10.5
10.5
12.2 .015 .38 .181 4.60
12.7
4 Green 14 White/Red
5 Brown 15 White/Green
6 Blue 16 White/Orange
7 Orange 17 White/Blue
5405UE 7 7 500
1000
5406UE 8 7 U-1000
1000
5407UE 9 7 1000
152 19.0 8.6 .015 .38 .198 5.03
305 40.0 18.2
U-305 41.0 18.6 .015 .38 .215 5.46
305 43.0 19.5
305 48.0 21.8 .015 .38 .233 5.92
8 Yellow 18 White/Brown 5408UE 10 7 1000 305 53.0 24.1 .015 .38 .254 6.45
9 Purple 19 White/Yellow 5409UE 12 7 1000 305 62.0 28.1 .015 .38 .262 6.65
10 Gray 20 White/Purple 540BUE 20 7 1000 305 110.0 49.9 .025 .64 .347 8.81
F o r m o r e i n f o r m a t i o n , c o n t a c t B e l d e n Te c h n i c a l S u p p o r t : 1 – 8 0 0 – B E L D E N – 1 • w w w . b e l d e n . c o m
