N E W G E N E R A T I O N ® C A B L E S 20.15
Security and Alarm Cable
Commercial Applications
Unshielded
Números de Parte: 5541UE, 5542UE, 5543UE, 5547UE, 5341UE, 5342UE, 5343UE, 5345UE, 5347UE
Hoja Técnica
http://www.belden.com/products/catalogs/mastercatalog/brilliance/upload/20-8_27.pdf
Video de Cables Belden
Unshielded Twisted Pairs
CMR/CMG FT4 Rated Part No. of
No. Pairs
Product Description
Stranding
Standard Standard Outer Jacket
Lengths Unit Weight Thickness Nominal OD
Ft. m Lbs. kg Inch mm Inch mm
Bare copper conductors, PVC insulation. Unshielded Twisted Pairs (NEC CMR and CEC CMG FT4)
Conductors twisted into pairs, multiple pairs 22 AWG

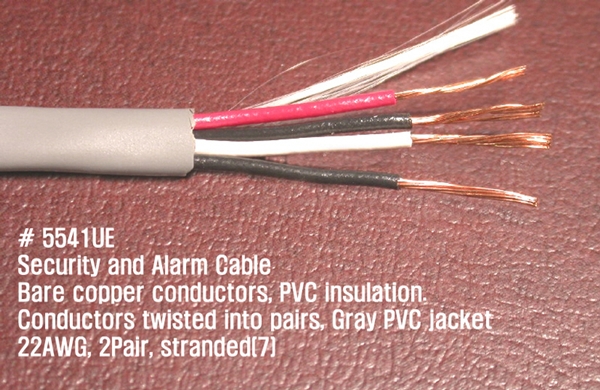

cabled together, Gray PVC jacket with rip cord. 5541UE 2 7 U-1000 U-305 18.0 8.2 .015 .38 .206 5.23
Sequential footage marking every two feet. 1000 305 19.0 8.6
Color Code: See chart below.
Specifications
Conductor
5542UE 3
5543UE 4
Bare Copper
7 U-500 U-152 13.0
U-1000 U-305 24.0
1000 305 26.0
7 U-1000 U-305 31.0
1000 305 32.0
5.9 .015 .38 .220 5.59
10.9
11.8
14.1 .015 .38 .243 6.17
14.5
Insulation PVC 5547UE 9 7 1000 305 70.0 31.8 .020 .51 .334 8.48
Insulation Thickness .010″ (.254mm)
Jacket PVC
Approvals
NEC CMR
CEC CMG FT4
18 AWG
5341UE 2 7 U-1000
1000
5342UE 3 7 U-1000
1000
U-305 34.0 15.4 .015 .38 .266 6.76
305 36.0 16.4
U-305 48.0 21.8 .015 .38 .283 7.19
305 50.0 22.7
NEC Articles 800 5343UE 4 7 1000 305 67.0 30.5 .018 .46 .320 8.13
Voltage Rating 300V 5345UE 6 7 1000 305 96.0 43.6 .018 .46 .362 9.19
Temperature Rating 75°C 5347UE 9 7 1000 305 140.0 63.6 .020 .51 .434 11.02
Applications
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
Color Code Chart
Pair No. Color Combination
1 Black & Red
2 Black & White
3 Black & Green
4 Black & Blue
5 Black & Yellow
6 Black & Brown
7 Black & Orange
8 Red & White
9 Red & Green
