1371 Teflon 0.006 inches

1371 Teflon 0.006 inches

B83041, B83043, B83045, B83046, B83047, B83048, B83049, B83050

Somos Especialistas en Cables. Distribuimos en toda la Republica Mexicana: Innovative Trade Center, Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Tijuana, B. C. www.innovative.com.mx

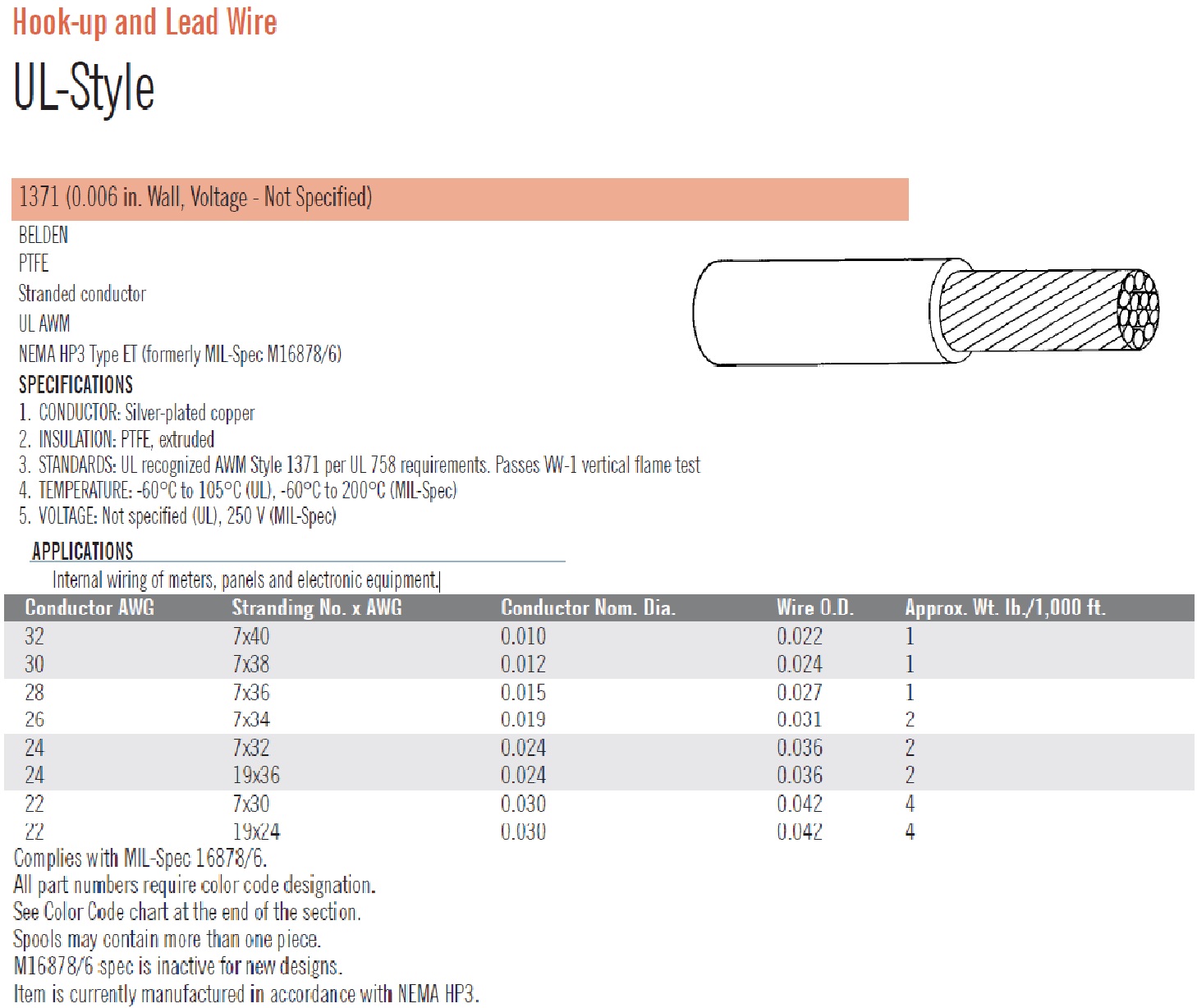

Hook up and Lead wire cable UL style, 1371 Teflon 0.006 inches

Belden
PTFE
conductor trenzado
UL AWM
NEMA HP3 Tipo ET (anteriormente MIL-Spec M16878 / 6)
ESPECIFICACIONES Hook up and Lead wire cable UL style
1. Conductor: Cobre plateado
2. AISLAMIENTO: PTFE, extruido
3. NORMAS: UL reconocido AWM Style 1,371 por UL 758 requisitos. Pasa VW-1 prueba de llama vertical
4. TEMPERATURA: -60 ° C a 105 ° C (UL), -60 ° C a 200 ° C (MIL-Spec)
5. TENSIÓN: no especificado (UL), 250 V (MIL-Spec)
APLICACIONES Hook up and Lead wire cable UL style
El cableado interno de metros, paneles y equipos electrónicos.

Hook up and Lead wire cable UL style. 1371 Teflon 0.006 inches

BELDEN
PTFE
Stranded conductor
UL AWM
NEMA HP3 Type ET (formerly MIL-Spec M16878/6)
SPECIFICATIONS Hook up and Lead wire cable UL style
1. CONDUCTOR: Silver-plated copper
2. INSULATION: PTFE, extruded
3. STANDARDS: UL recognized AWM Style 1371 per UL 758 requirements. Passes VW-1 vertical flame test
4. TEMPERATURE: -60°C to 105°C (UL), -60°C to 200°C (MIL-Spec)
5. VOLTAGE: Not specified (UL), 250 V (MIL-Spec)
APPLICATIONS Hook up and Lead wire cable UL style
Internal wiring of meters, panels and electronic equipment.

B83041-XX, B83043-XX, B83045-XX, B83046-XX, B83047-XX, B83048-XX, B83049-XX, B83050-XX

B83041, B83043, B83045, B83046, B83047, B83048, B83049, B83050
