Basic and Metered Power Outlet Units continued

Basic and Metered Power Outlet Units continued

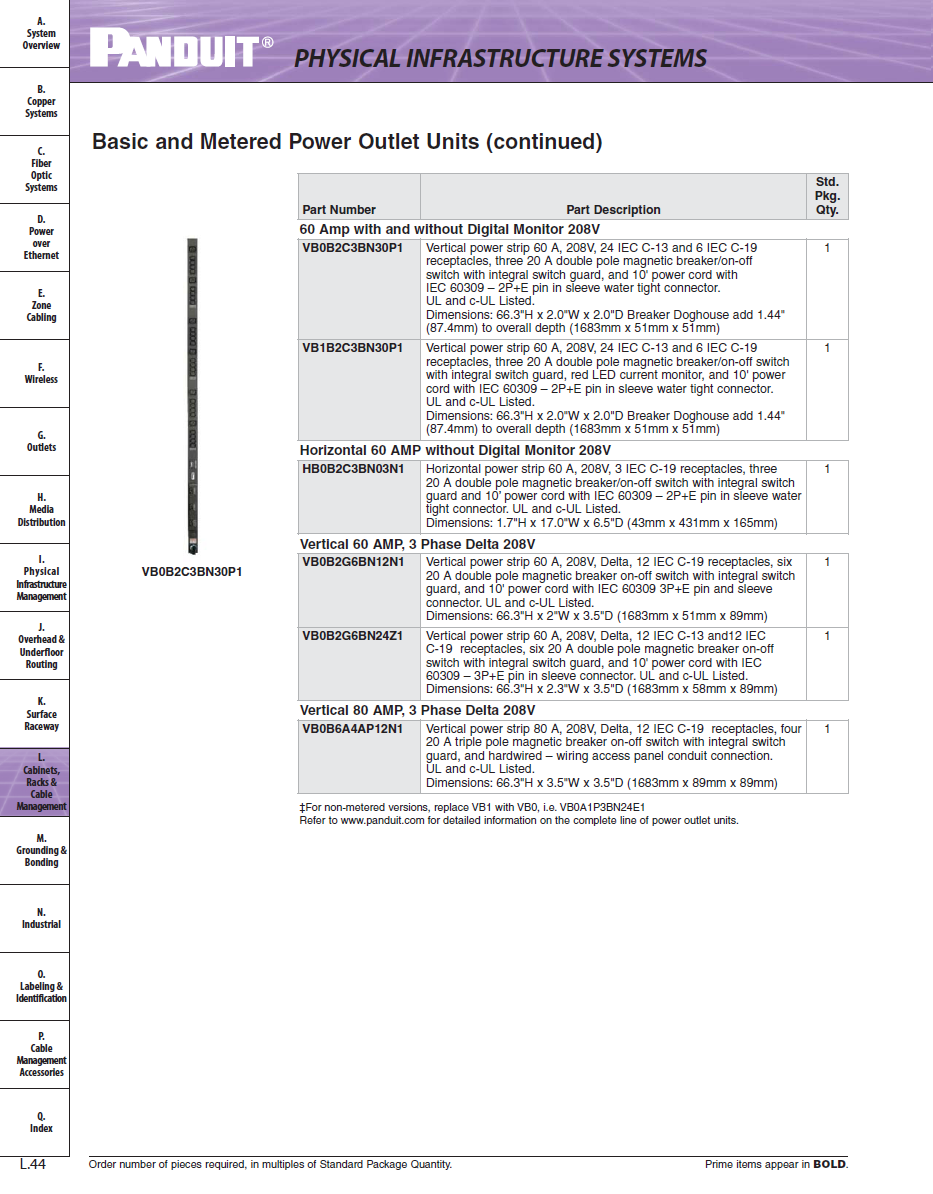

VB0B2C3BN30P1, VB1B2C3BN30P1, HB0B2C3BN03N1, VB0B2G6BN12N1, VB0B2G6BN24Z1, VB0B6A4AP12N1

Basic and Metered Power Outlet Units continued

Contactenos en: www.innovative.com.mx Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Innovative Trade Center Tijuana, B. C. Distribuimos en toda la republica

Unidades de salida de alimentación básica y medido ,Basic and Metered Power Outlet Units continued,Basic and Metered Power Outlet Units continued,Basic and Metered Power Outlet Units continued,Basic and Metered Power Outlet Units continued,Basic and Metered Power Outlet Units continued.

Regleta opciones monofásico 15, 20, 30 y 60 amperios

• Regleta vertical 60 A, 208V, 24 IEC C-13 y 6 IEC C-19 receptáculos, tres 20 A doble polo magnético interruptor encendido-apagado interruptor con interruptor integral protector y 10′ power cable con Perno de 60309 – 2P + E IEC en conector apretado del agua manguito. UL y c-UL enumerados.

  Dimensiones: 66,3″ H x 2.0″ W x 2.0 «D Interruptor Doghouse añade 1.44» (87,4 mm) de profundidad total (1683 x 51 x 51 mm)
• Vertical power strip 60 A, 208V, 24 IEC C-13 and 6 IEC C-19 receptacles, three 20 A double pole magnetic breaker/on-off switch with integral switch guard, and 10′ power cord with IEC 60309 – 2P+E pin in sleeve water tight connector.
  UL and c-UL Listed. Dimensions: 66.3″H x 2.0″W x 2.0″D Breaker Doghouse add 1.44″ (87.4mm) to overall depth (1683mm x 51mm x 51mm)

VB1B2C3BN30P1:

• Regleta vertical 60 A, 208V, 24 IEC C-13 y 6 IEC C-19 receptáculos, tres 20 A doble interruptor de encendido y apagado interruptor magnético Polo con interruptor integral protector, monitor actual del LED rojo y 10′ poder

  cable con clavija IEC 60309 – 2P + E en el conector de manga herméticos al agua. UL y c-UL enumerados.

  Dimensiones: 66,3″ H x 2.0″ W x 2.0 «D Interruptor Doghouse añade 1.44» (87,4 mm) de profundidad total (1683 x 51 x 51 mm)
• Vertical power strip 60 A, 208V, 24 IEC C-13 and 6 IEC C-19 receptacles, three 20 A double pole magnetic breaker/on-off switch with integral switch guard, red LED current monitor, and 10′ power cord with IEC 60309 – 2P+E pin in sleeve water tight connector. UL and c-UL Listed.
  Dimensions: 66.3″H x 2.0″W x 2.0″D Breaker Doghouse add 1.44″ (87.4mm) to overall depth (1683mm x 51mm x 51mm)

HB0B2C3BN03N1:

• Eléctrico horizontal tira de 60 A, 208V, 3 receptáculos IEC C-19, tres 20 un bipolar magnético interruptor/Interruptor on-off con interruptor integral guardia y 10′ cable de alimentación con clavija IEC 60309 – 2P + E en el agua de la manga conectador hermético. UL y c-UL enumerados.

  Dimensiones: 1,7″ H x 17.0″W x 6.5″ D (43 x 431 x 165 mm)
• Horizontal power strip 60 A, 208V, 3 IEC C-19 receptacles, three 20 A double pole magnetic breaker/on-off switch with integral switch guard and 10’ power cord with IEC 60309 – 2P+E pin in sleeve water
  tight connector. UL and c-UL Listed.
  Dimensions: 1.7″H x 17.0″W x 6.5″D (43mm x 431mm x 165mm)

VB0B2G6BN12N1:

• Regleta vertical 60 A, 208V, Delta, 12 tomas de corriente IEC C-19, 6 20 un interruptor magnético de encendido y apagado interruptor bipolar con interruptor integral guardia y 10′ power cable con IEC 60309 pin 3P + n + E y manga conector. UL y c-UL enumerados.

  Dimensiones: 66,3″ H x 2″ W x 3,5″ D (1683 mm x 51 mm x 89 mm)
• Vertical power strip 60 A, 208V, Delta, 12 IEC C-19 receptacles, six 20 A double pole magnetic breaker on-off switch with integral switch guard, and 10′ power cord with IEC 60309 3P+E pin and sleeve
  connector. UL and c-UL Listed. Dimensions: 66.3″H x 2″W x 3.5″D (1683mm x 51mm x 89mm)

VB0B2G6BN24Z1:

• Vertical regleta 60 A, 208V, Delta, 12 IEC C-13 and12 IEC Receptáculos de C-19, seis 20 A doble polos magnéticos del interruptor de encendido y apagado interruptor con interruptor integral protector y 10′ cable con la norma IEC 60309 – pin 3P + E en el conector de la manga. UL y c-UL enumerados.

  Dimensiones: 66,3″ H x 2,3 » W x 3,5″ D (1683 mm x 58 mm x 89 mm)
• Vertical power strip 60 A, 208V, Delta, 12 IEC C-13 and12 IEC C-19 receptacles, six 20 A double pole magnetic breaker on-off switch with integral switch guard, and 10′ power cord with IEC 60309 – 3P+E pin in sleeve connector. UL and c-UL Listed. Dimensions: 66.3″H x 2.3″W x 3.5″D (1683mm x 58mm x 89mm)

VB0B6A4AP12N1:

• Regleta vertical 80 A, 208V, Delta, 12 tomas de corriente IEC C-19, 4 20 un triple poste interruptor magnético interruptor on-off con interruptor integral guardia y cableado – cableado conexión de conducto de acceso del panel. UL y c-UL enumerados. Dimensiones: 66,3″ H x 3,5 » W x 3,5″ D (1683 x 89 x 89 mm)
• Vertical power strip 80 A, 208V, Delta, 12 IEC C-19 receptacles, four 20 A triple pole magnetic breaker on-off switch with integral switch guard, and hardwired – wiring access panel conduit connection.
  UL and c-UL Listed. Dimensions: 66.3″H x 3.5″W x 3.5″D (1683mm x 89mm x 89mm)
