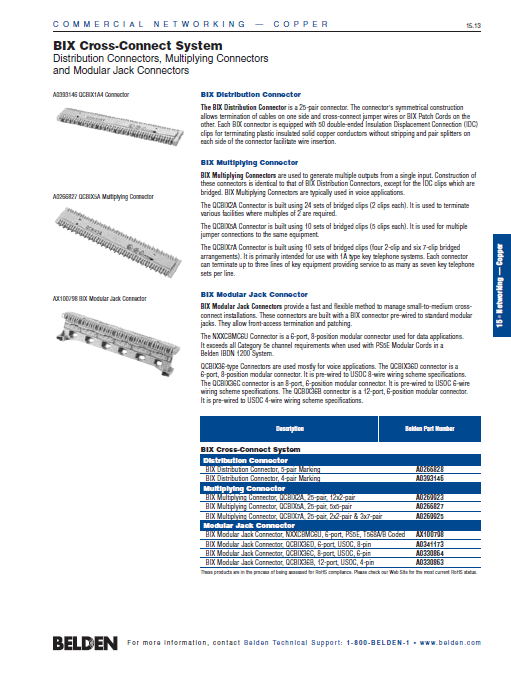

BIX Cross-Connect System
Distribution Connectors, Multiplying Connectors
and Modular Jack Connectors

BIX Distribution Connector
The BIX Distribution Connector is a 25-pair connector. The connector’s symmetrical construction
allows termination of cables on one side and cross-connect jumper wires or BIX Patch Cords on the
other. Each BIX connector is equipped with 50 double-ended Insulation Displacement Connection (IDC)
clips for terminating plastic insulated solid copper conductors without stripping and pair splitters on
each side of the connector facilitate wire insertion.
BIX Multiplying Connector
BIX Multiplying Connectors are used to generate multiple outputs from a single input. Construction of
these connectors is identical to that of BIX Distribution Connectors, except for the IDC clips which are
bridged. BIX Multiplying Connectors are typically used in voice applications.
The QCBIX2A Connector is built using 24 sets of bridged clips (2 clips each). It is used to terminate
various facilities where multiples of 2 are required.
The QCBIX5A Connector is built using 10 sets of bridged clips (5 clips each). It is used for multiple
jumper connections to the same equipment.
The QCBIX7A Connector is built using 10 sets of bridged clips (four 2-clip and six 7-clip bridged
arrangements). It is primarily intended for use with 1A type key telephone systems. Each connector
can terminate up to three lines of key equipment providing service to as many as seven key telephone
sets per line.
BIX Modular Jack Connector
BIX Modular Jack Connectors provide a fast and flexible method to manage small-to-medium crossconnect
installations. These connectors are built with a BIX connector pre-wired to standard modular
jacks. They allow front-access termination and patching.
The NXXCBMC6U Connector is a 6-port, 8-position modular connector used for data applications.
It exceeds all Category 5e channel requirements when used with PS5E Modular Cords in a
Belden IBDN 1200 System.
QCBIX36-type Connectors are used mostly for voice applications. The QCBIX36D connector is a
6-port, 8-position modular connector. It is pre-wired to USOC 8-wire wiring scheme specifications.
The QCBIX36C connector is an 8-port, 6-position modular connector. It is pre-wired to USOC 6-wire
wiring scheme specifications. The QCBIX36B connector is a 12-port, 6-position modular connector.
It is pre-wired to USOC 4-wire wiring scheme specifications.
