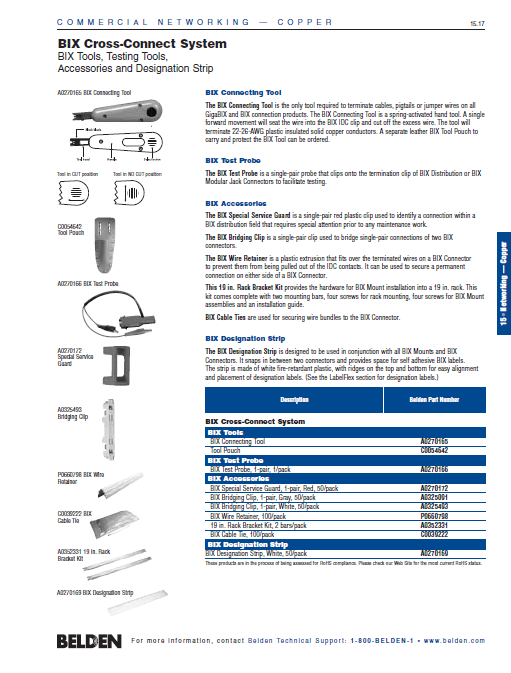

BIX Cross-Connect System
BIX Tools, Testing Tools,
Accessories and Designation Strip

BIX Connecting Tool
The BIX Connecting Tool is the only tool required to terminate cables, pigtails or jumper wires on all
GigaBIX and BIX connection products. The BIX Connecting Tool is a spring-activated hand tool. A single
forward movement will seat the wire into the BIX IDC clip and cut off the excess wire. The tool will
terminate 22-26-AWG plastic insulated solid copper conductors. A separate leather BIX Tool Pouch to
carry and protect the BIX Tool can be ordered.

BIX Cross Connect System Tools

BIX Test Probe
The BIX Test Probe is a single-pair probe that clips onto the termination clip of BIX Distribution or BIX
Modular Jack Connectors to facilitate testing.
BIX Accessories
The BIX Special Service Guard is a single-pair red plastic clip used to identify a connection within a
BIX distribution field that requires special attention prior to any maintenance work.
The BIX Bridging Clip is a single-pair clip used to bridge single-pair connections of two BIX
connectors.
The BIX Wire Retainer is a plastic extrusion that fits over the terminated wires on a BIX Connector
to prevent them from being pulled out of the IDC contacts. It can be used to secure a permanent
connection on either side of a BIX Connector.
This 19 in. Rack Bracket Kit provides the hardware for BIX Mount installation into a 19 in. rack. This
kit comes complete with two mounting bars, four screws for rack mounting, four screws for BIX Mount
assemblies and an installation guide.
BIX Cable Ties are used for securing wire bundles to the BIX Connector.
BIX Designation Strip
The BIX Designation Strip is designed to be used in conjunction with all BIX Mounts and BIX
Connectors. It snaps in between two connectors and provides space for self adhesive BIX labels.
The strip is made of white fire-retardant plastic, with ridges on the top and bottom for easy alignment
and placement of designation labels. (See the LabelFlex section for designation labels.)

Numero de Parte Belden: A0270165, C0054642, A0270166, A0270172, A0325091, A0325493, P0660798, A0352331, C0039222, A0270169
