N E W G E N E R A T I O N ® C A B L E S 20.20
Security and Alarm Cable
Commercial Applications
Unshielded, Plenum-Rated
Números de Parte:
6520UE, 6500UE, 6521UE, 6501UE, 6522UE, 6502UE, 6524UE, 6504UE, 6506UE, 6508UE, 6509UE, 6400UE, 6401UE, 6402UE, 6403UE, 6406UE, 6320UE, 6300UE, 6321UE, 6301UE, 6322UE, 6302UE, 6303UE, 6304UE, 6306UE, 6307UE, 6308UE, 6309UE, 6200UE, 6201UE, 6202UE, 6100UE, 6101UE, 6102UE, 6000UE, 6001UE, 6002UE.
Hoja Técnica
http://www.belden.com/products/catalogs/mastercatalog/brilliance/upload/20-8_27.pdf
Video de Cables Belden
Unshielded Multi-conductor
CMP FT6 Rated Part No. of
No. Cond.
Product Description
Stranding
Standard Standard Outer Jacket
Lengths Unit Weight Thickness Nominal OD
Ft. m Lbs. kg Inch mm Inch mm
Bare copper conductors, Flamarrest® insulation,
conductors cabled, Natural Flamarrest jacket,
rip cord. Sequential footage marking every two feet.
Color Code: See chart below.
Specifications
Conductor Bare Copper
Unshielded Multi-conductor (NEC CMP and CEC CMP FT6)
22 AWG
6520UE 2 solid U-1000 U-305 10.0 4.5 .015 .38 .118 3.00
1000 305 9.0 4.1
6500UE 2 7 C-500 C-152 4.5 2.0 .015 .38 .124 3.15
C-1000 C-305 9.0 4.1
U-1000 U-305 10.0 4.5
1000 305 10.0 4.5
Insulation Flamarrest 6521UE 3 solid 1000 305 13.0 5.9 .015 .38 .125 3.18
Insulation Thickness .009″ (.229mm)
Jacket Flamarrest
Approvals
NEC CMP
CEC CMP FT6
NEC Articles 800
Voltage Rating 300V
Temperature Rating 75°C
6501UE 3 7 U-1000
1000
6522UE 4 solid U-500
U-1000
1000
6502UE 4 7 C-500
U-500
500
U-1000
1000
U-305 14.0 6.4 .015 .38 .131 3.33
305 13.0 5.9
U-152 8.5 3.9 .015 .38 .136 3.45
U-305 17.0 7.7
305 16.0 7.3
C-152 8.0 3.6 .015 .38 .143 3.63
U-152 9.0 4.1
152 8.5 3.9
U-305 17.0 7.7
305 17.0 7.7
Applications
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
6524UE 6 solid C-500
U-1000
6504UE 6 7 C-500
500
U-1000
1000
C-152 10.5 4.8 .015 .38 .162 4.11
U-305 23.0 10.5
C-152 11.0 5.0 .015 .38 .171 4.34
152 12.0 5.5
U-305 24.0 10.9
305 24.0 10.9
6506UE 8
Solid Conductor
7 U-500 U-152 15.5
U-1000 U-305 30.0
1000 305 31.0
7.0 .015 .38 .186 4.72
13.6
14.1

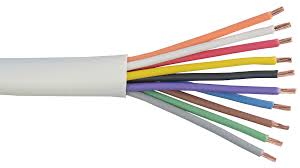

6508UE 10 7 U-1000 U-305 37.0 16.8 .015 .38 .218 5.54
1000 305 43.0 19.5
Stranded Conductor
6509UE 12 7 U-500
U-1000
1000
20 AWG
6400UE 2 7 C-500
500
U-1000
1000
U-152 22.5 10.2 .015 .38 .225 5.72
U-305 43.0 19.5
305 45.0 20.4
C-152 6.0 2.7 .015 .38 .138 3.51
152 7.0 3.2
U-305 14.0 6.4
305 14.0 6.4
6401UE 3 7 U-1000 U-305 19.0 8.6 .015 .38 .146 3.71
1000 305 18.0 8.2
5000 1524 90.0 40.9
6402UE 4 7 U-1000 U-305 24.0 10.9 .015 .38 .160 4.06
1000 305 24.0 10.9
6403UE 5 7 U-1000 U-305 28.0 12.7 .015 .38 .176 4.47
1000 305 28.0 12.7
Color Code Chart
Cond. No. Color
1 Black
2 Red
3 White
4 Green
5 Brown
6 Blue
6406UE 8 7 1000
Cond. No. Color
7 Orange
8 Yellow
9 Purple
10 Gray
11 Pink
12 Tan
F o r m o r e i n f o r m a t i o n , c o n t a c t B e l d e n Te c h n i c a l S u p p o r t :
305 44.0 20.0 .015 .38 .209 5.31
1 – 8 0 0 – B E L D E N – 1 • w w w . b e l d e n . c o m
