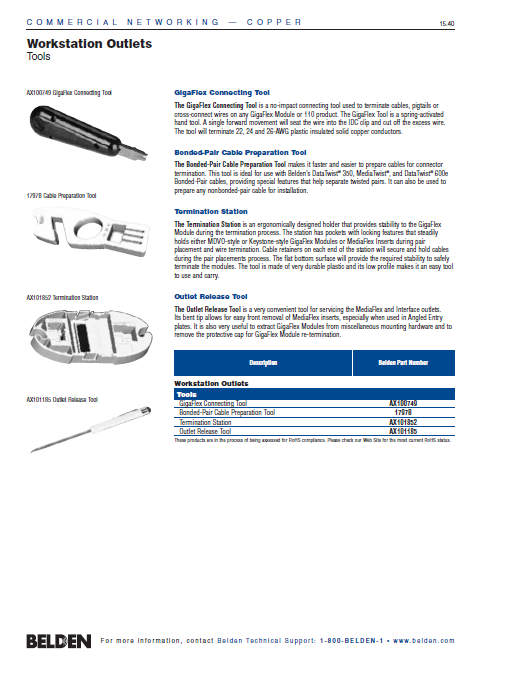

Workstation Outlets Tools

Workstation Outlets
Tools

GigaFlex Connecting Tool
The GigaFlex Connecting Tool is a no-impact connecting tool used to terminate cables, pigtails or
cross-connect wires on any GigaFlex Module or 110 product. The GigaFlex Tool is a spring-activated
hand tool. A single forward movement will seat the wire into the IDC clip and cut off the excess wire.
The tool will terminate 22, 24 and 26-AWG plastic insulated solid copper conductors.
Bonded-Pair Cable Preparation Tool
The Bonded-Pair Cable Preparation Tool makes it faster and easier to prepare cables for connector
termination. This tool is ideal for use with Belden’s DataTwist® 350, MediaTwist®, and DataTwist® 600e
Bonded-Pair cables, providing special features that help separate twisted pairs. It can also be used to
prepare any nonbonded-pair cable for installation.
Termination Station
The Termination Station is an ergonomically designed holder that provides stability to the GigaFlex
Module during the termination process. The station has pockets with locking features that steadily
holds either MDVO-style or Keystone-style GigaFlex Modules or MediaFlex Inserts during pair
placement and wire termination. Cable retainers on each end of the station will secure and hold cables
during the pair placements process. The flat bottom surface will provide the required stability to safely
terminate the modules. The tool is made of very durable plastic and its low profile makes it an easy tool
to use and carry.
Outlet Release Tool
The Outlet Release Tool is a very convenient tool for servicing the MediaFlex and Interface outlets.
Its bent tip allows for easy front removal of MediaFlex inserts, especially when used in Angled Entry
plates. It is also very useful to extract GigaFlex Modules from miscellaneous mounting hardware and to
remove the protective cap for GigaFlex Module re-termination.

Numero de Parte Belden: AX100749, 1797B, AX101852, AX101185
