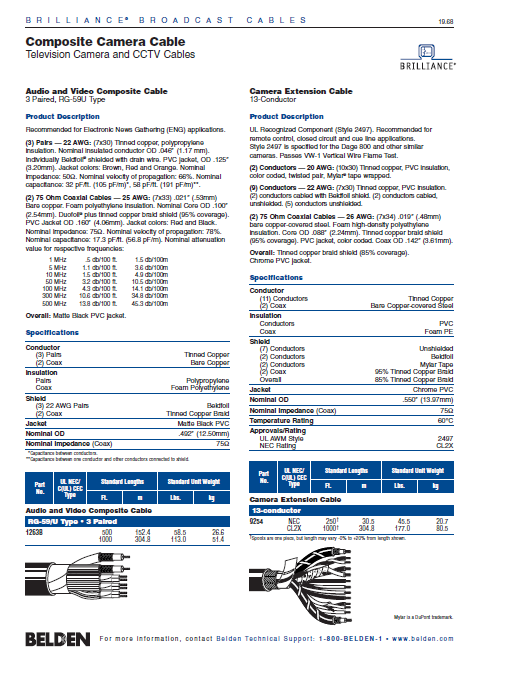

Composite Camera Cable Television Camera

Composite Camera Cable
Television Camera and CCTV Cables

Audio and Video Composite Cable
3 Paired, RG-59U Type
Product Description
Recommended for Electronic News Gathering (ENG) applications.
(3) Pairs — 22 AWG: (7×30) Tinned copper, polypropylene
insulation. Nominal insulated conductor OD .046″ (1.17 mm).
Individually Beldfoil® shielded with drain wire. PVC jacket, OD .125″
(3.20mm). Jacket colors: Brown, Red and Orange. Nominal
impedance: 50Ω. Nominal velocity of propagation: 66%. Nominal
capacitance: 32 pF/ft. (105 pF/m)*, 58 pF/ft. (191 pF/m)**.
(2) 75 Ohm Coaxial Cables — 25 AWG: (7×33) .021″ (.53mm)
Bare copper. Foam polyethylene insulation. Nominal Core OD .100″
(2.54mm). Duofoil® plus tinned copper braid shield (95% coverage).
PVC Jacket OD .160″ (4.06mm). Jacket colors: Red and Black.
Nominal Impedance: 75Ω. Nominal velocity of propagation: 78%.
Nominal capacitance: 17.3 pF/ft. (56.8 pF/m). Nominal attenuation
value for respective frequencies:
1 MHz .5 db/100 ft. 1.5 db/100m
5 MHz 1.1 db/100 ft. 3.6 db/100m
10 MHz 1.5 db/100 ft. 4.9 db/100m
50 MHz 3.2 db/100 ft. 10.5 db/100m
100 MHz 4.3 db/100 ft. 14.1 db/100m
300 MHz 10.6 db/100 ft. 34.8 db/100m
500 MHz 13.8 db/100 ft. 45.3 db/100m

Camera Extension Cable
13-Conductor
Product Description
UL Recognized Component (Style 2497). Recommended for
remote control, closed circuit and cue line applications.
Style 2497 is specified for the Dage 800 and other similar
cameras. Passes VW-1 Vertical Wire Flame Test.
(2) Conductors — 20 AWG: (10×30) Tinned copper, PVC insulation,
color coded, twisted pair, Mylar® tape wrapped.
(9) Conductors — 22 AWG: (7×30) Tinned copper, PVC insulation.
(2) conductors cabled with Beldfoil shield. (2) conductors cabled,
unshielded. (5) conductors unshielded.
(2) 75 Ohm Coaxial Cables — 26 AWG: (7×34) .019″ (.48mm)
bare copper-covered steel. Foam high-density polyethylene
insulation. Core OD .088″ (2.24mm). Tinned copper braid shield
(95% coverage). PVC jacket, color coded. Coax OD .142″ (3.61mm).

Numero de Parte Belden: 1263B, 9254
