Fiber Duct Bend Radius Control Trumpets

Fiber Duct Bend Radius Control Trumpets

TRC2BL, TRC4BL, NR2WH-L, NR4BL-L, F14PWN-L, F14PN-L

Fiber-Duct ™ Radio de curvatura Trompetas de control

• Proporcionar método para cableado de transición en el sistema de rack
• Mantener 1 pulgada (25,4 mm) de control de radio de curvatura

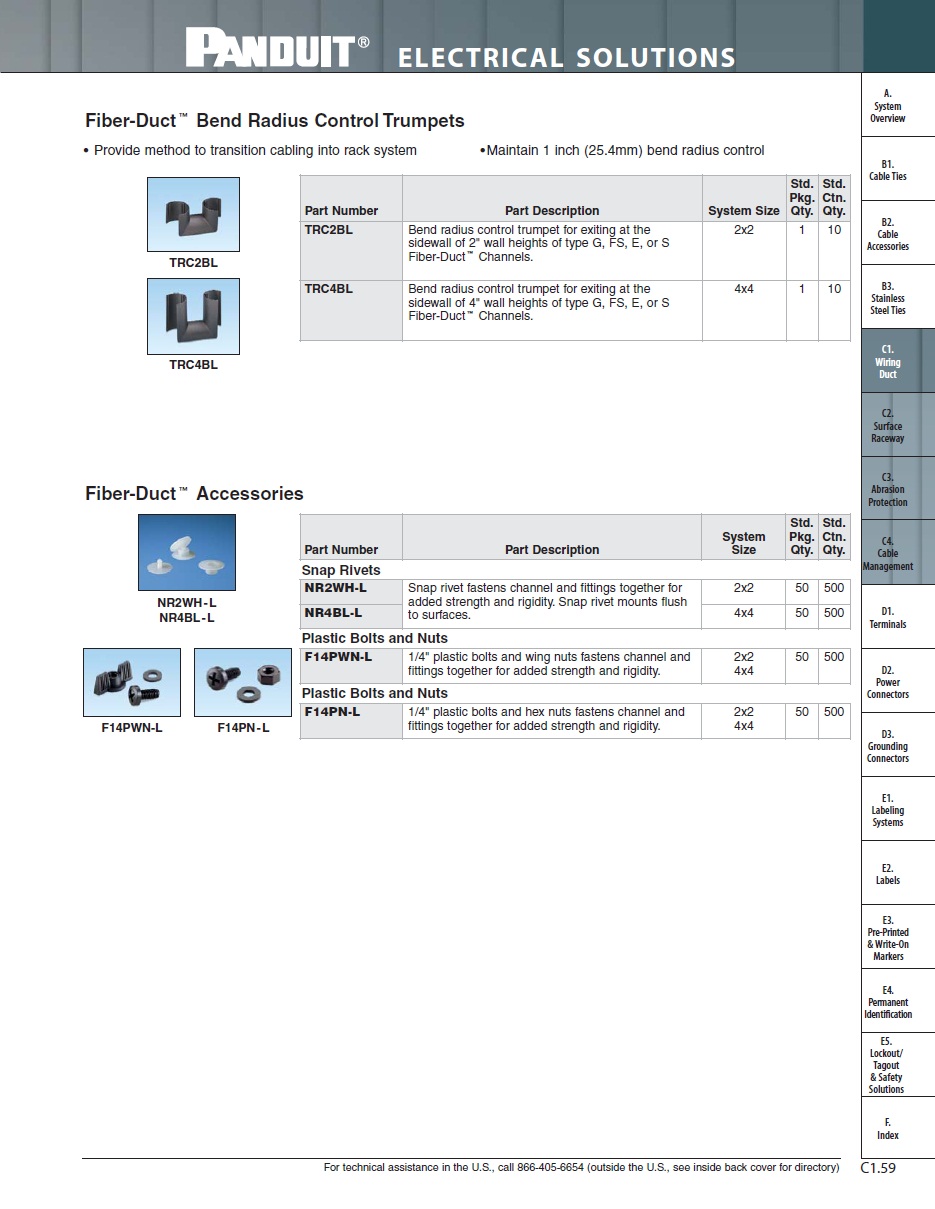

Fiber Duct Bend Radius Control Trumpets

• Provide method to transition cabling into rack system
• Maintain 1 inch (25.4mm) bend radius control

Número de pieza Fiber-Duct Bend Radius Control Trumpets

TRC2BL Curva trompeta control de radio para salir en la
pared lateral de 2 alturas del muro «de tipo G, FS, E o S
Fiber-Duct ™ Canales.

TRC4BL Curva trompeta control de radio para salir en la
pared lateral de 4 alturas del muro «de tipo G, FS, E o S
Fiber-Duct ™ Canales.

Fiber-Duct ™ Accesorios

Snap Remaches

NR4BL-L

NR2WH-L

Snap remache sujeta canal y accesorios juntos por
añadido resistencia y rigidez. Snap remache montajes rasantes
a las superficies.

Pernos y tuercas de plástico

F14PWN-L

1/4 «tornillos de plástico y tuercas de mariposa fastens canal y
accesorios de juntas para mayor resistencia y rigidez.

Pernos y tuercas de plástico

F14PN-L

1/4 «tornillos de plástico y tuercas hexagonales abrocha canal

Part Number Fiber-Duct Bend Radius Control Trumpets

TRC2BL Bend radius control trumpet for exiting at the
sidewall of 2″ wall heights of type G, FS, E, or S
Fiber-Duct ™ Channels.

TRC4BL Bend radius control trumpet for exiting at the
sidewall of 4″ wall heights of type G, FS, E, or S
Fiber-Duct ™ Channels.

Fiber-Duct ™ Accessories

Snap Rivets

NR4BL-L

NR2WH-L

Snap rivet fastens channel and fittings together for
added strength and rigidity. Snap rivet mounts flush
to surfaces.

Plastic Bolts and Nuts

F14PWN-L

1/4″ plastic bolts and wing nuts fastens channel and
fittings together for added strength and rigidity.

Plastic Bolts and Nuts

F14PN-L

1/4″ plastic bolts and hex nuts fastens channel

Fiber Duct Bend Radius Control Trumpets
