GigaBIX Multi System

GigaBIX Multi System
Cable Management Accessories

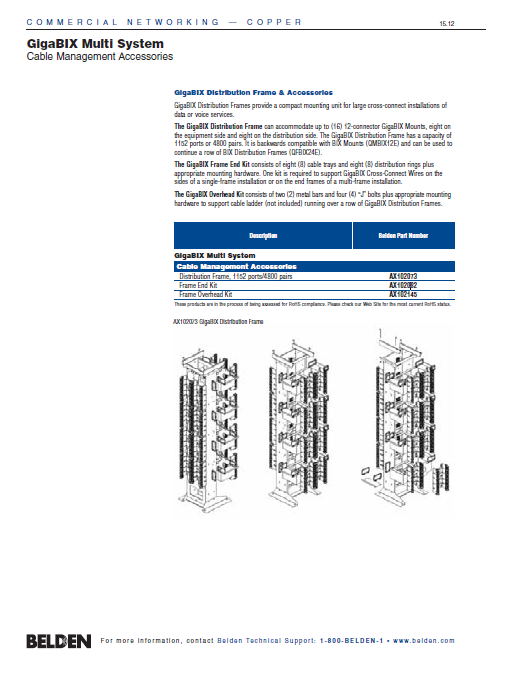

GigaBIX Distribution Frame & Accessories
GigaBIX Distribution Frames provide a compact mounting unit for large cross-connect installations of
data or voice services.
The GigaBIX Distribution Frame can accommodate up to (16) 12-connector GigaBIX Mounts, eight on
the equipment side and eight on the distribution side. The GigaBIX Distribution Frame has a capacity of
1152 ports or 4800 pairs. It is backwards compatible with BIX Mounts (QMBIX12E) and can be used to
continue a row of BIX Distribution Frames (QFBIX24E).
The GigaBIX Frame End Kit consists of eight (8) cable trays and eight (8) distribution rings plus
appropriate mounting hardware. One kit is required to support GigaBIX Cross-Connect Wires on the
sides of a single-frame installation or on the end frames of a multi-frame installation.
The GigaBIX Overhead Kit consists of two (2) metal bars and four (4) “J” bolts plus appropriate mounting
hardware to support cable ladder (not included) running over a row of GigaBIX Distribution Frames.

Numero de Parte Belden: AX102073, AX102082, AX102145
