GigaBIX Multi System Termination

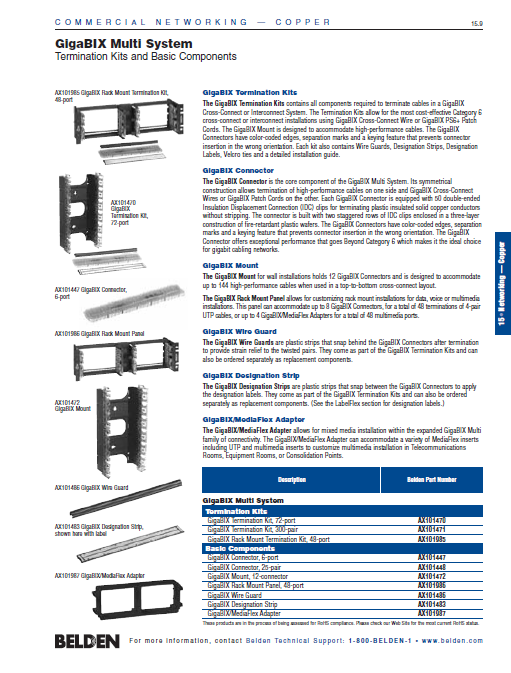

GigaBIX Multi System
Termination Kits and Basic Components

GigaBIX Termination Kits
The GigaBIX Termination Kits contains all components required to terminate cables in a GigaBIX
Cross-Connect or Interconnect System. The Termination Kits allow for the most cost-effective Category 6
cross-connect or interconnect installations using GigaBIX Cross-Connect Wire or GigaBIX PS6+ Patch
Cords. The GigaBIX Mount is designed to accommodate high-performance cables. The GigaBIX
Connectors have color-coded edges, separation marks and a keying feature that prevents connector
insertion in the wrong orientation. Each kit also contains Wire Guards, Designation Strips, Designation
Labels, Velcro ties and a detailed installation guide.
GigaBIX Connector
The GigaBIX Connector is the core component of the GigaBIX Multi System. Its symmetrical
construction allows termination of high-performance cables on one side and GigaBIX Cross-Connect
Wires or GigaBIX Patch Cords on the other. Each GigaBIX Connector is equipped with 50 double-ended
Insulation Displacement Connection (IDC) clips for terminating plastic insulated solid copper conductors
without stripping. The connector is built with two staggered rows of IDC clips enclosed in a three-layer
construction of fire-retardant plastic wafers. The GigaBIX Connectors have color-coded edges, separation
marks and a keying feature that prevents connector insertion in the wrong orientation. The GigaBIX
Connector offers exceptional performance that goes Beyond Category 6 which makes it the ideal choice
for gigabit cabling networks.
GigaBIX Mount
The GigaBIX Mount for wall installations holds 12 GigaBIX Connectors and is designed to accommodate
up to 144 high-performance cables when used in a top-to-bottom cross-connect layout.
The GigaBIX Rack Mount Panel allows for customizing rack mount installations for data, voice or multimedia
installations. This panel can accommodate up to 8 GigaBIX Connectors, for a total of 48 terminations of 4-pair
UTP cables, or up to 4 GigaBIX/MediaFlex Adapters for a total of 48 multimedia ports.
GigaBIX Wire Guard
The GigaBIX Wire Guards are plastic strips that snap behind the GigaBIX Connectors after termination
to provide strain relief to the twisted pairs. They come as part of the GigaBIX Termination Kits and can
also be ordered separately as replacement components.
GigaBIX Designation Strip
The GigaBIX Designation Strips are plastic strips that snap between the GigaBIX Connectors to apply
the designation labels. They come as part of the GigaBIX Termination Kits and can also be ordered
separately as replacement components. (See the LabelFlex section for designation labels.)
GigaBIX/MediaFlex Adapter
The GigaBIX/MediaFlex Adapter allows for mixed media installation within the expanded GigaBIX Multi
family of connectivity. The GigaBIX/MediaFlex Adapter can accommodate a variety of MediaFlex inserts
including UTP and multimedia inserts to customize multimedia installation in Telecommunications
Rooms, Equipment Rooms, or Consolidation Points.
