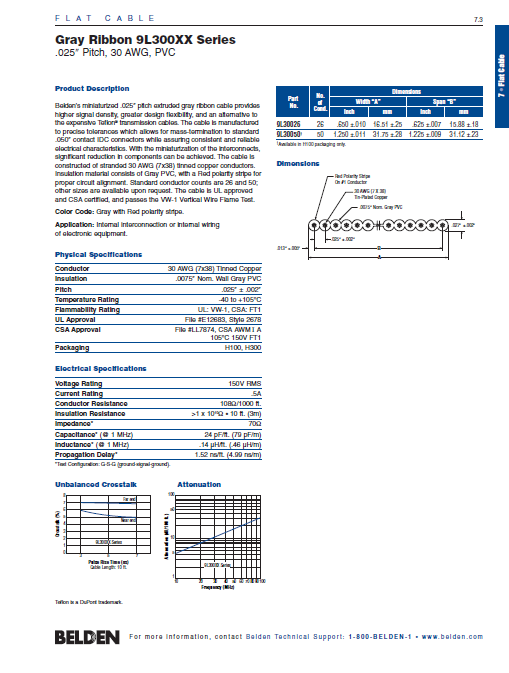

.025″ Pitch, 30 AWG, PVC

Product Description
Belden’s miniaturized .025″ pitch extruded gray ribbon cable provides
higher signal density, greater design flexibility, and an alternative to
the expensive Teflon® transmission cables. The cable is manufactured
to precise tolerances which allows for mass-termination to standard
.050″ contact IDC connectors while assuring consistent and reliable
electrical characteristics. With the miniaturization of the interconnects,
significant reduction in components can be achieved. The cable is
constructed of stranded 30 AWG (7×38) tinned copper conductors.
Insulation material consists of Gray PVC, with a Red polarity stripe for
proper circuit alignment. Standard conductor counts are 26 and 50;
other sizes are available upon request. The cable is UL approved
and CSA certified, and passes the VW-1 Vertical Wire Flame Test.
Color Code: Gray with Red polarity stripe.
Application: Internal interconnection or internal wiring
of electronic equipment.

Physical Specifications
Conductor 30 AWG (7×38) Tinned Copper
Insulation .0075″ Nom. Wall Gray PVC
Pitch .025″ ± .002″
Temperature Rating -40 to +105°C
Flammability Rating UL: VW-1, CSA: FT1
UL Approval File #E12683, Style 2678
CSA Approval File #LL7874, CSA AWM I A
105°C 150V FT1
Packaging H100, H300
Electrical Specifications
Voltage Rating 150V RMS
Current Rating .5A
Conductor Resistance 108Ω/1000 ft.
Insulation Resistance >1 x 1010Ω • 10 ft. (3m)
Impedance* 70Ω
Capacitance* (@ 1 MHz) 24 pF/ft. (79 pF/m)
Inductance* (@ 1 MHz) .14 μH/ft. (.46 μH/m)
Propagation Delay* 1.52 ns/ft. (4.99 ns/m)

Numero de Parte Belden: 9L30026, 9L30050†
