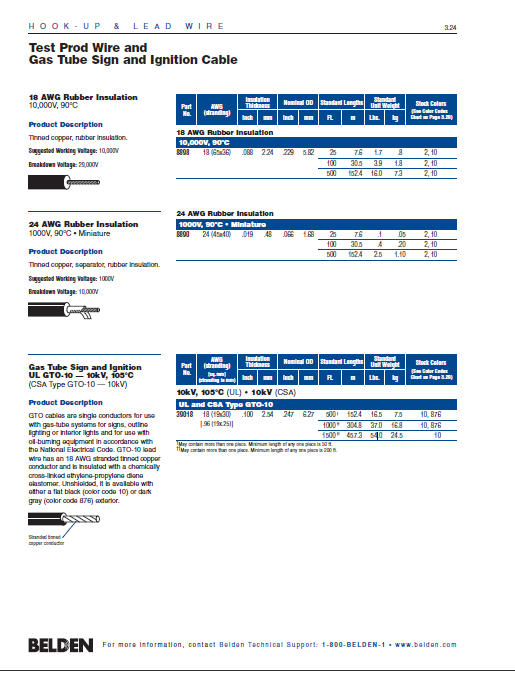

HOOK UP & LEAD WIRE, Test Prod Wire and Gas Tube Sign and Ignition Cable │

Test Prod Wire and
Gas Tube Sign and Ignition Cable

18 AWG Rubber Insulation
10,000V, 90°C
Product Description
Tinned copper, rubber insulation.
Suggested Working Voltage: 10,000V
Breakdown Voltage: 29,000V

24 AWG Rubber Insulation
1000V, 90°C • Miniature
Product Description
Tinned copper, separator, rubber insulation.
Suggested Working Voltage: 1000V
Breakdown Voltage: 10,000V

Gas Tube Sign and Ignition
UL GTO-10 — 10kV, 105°C
(CSA Type GTO-10 — 10kV)
Product Description
GTO cables are single conductors for use
with gas-tube systems for signs, outline
lighting or interior lights and for use with
oil-burning equipment in accordance with
the National Electrical Code. GTO-10 lead
wire has an 18 AWG stranded tinned copper
conductor and is insulated with a chemically
cross-linked ethylene-propylene diene
elastomer. Unshielded, it is available with
either a flat black (color code 10) or dark
gray (color code 876) exterior.

Numero de parte Belden: 8898, 8890, 39018
