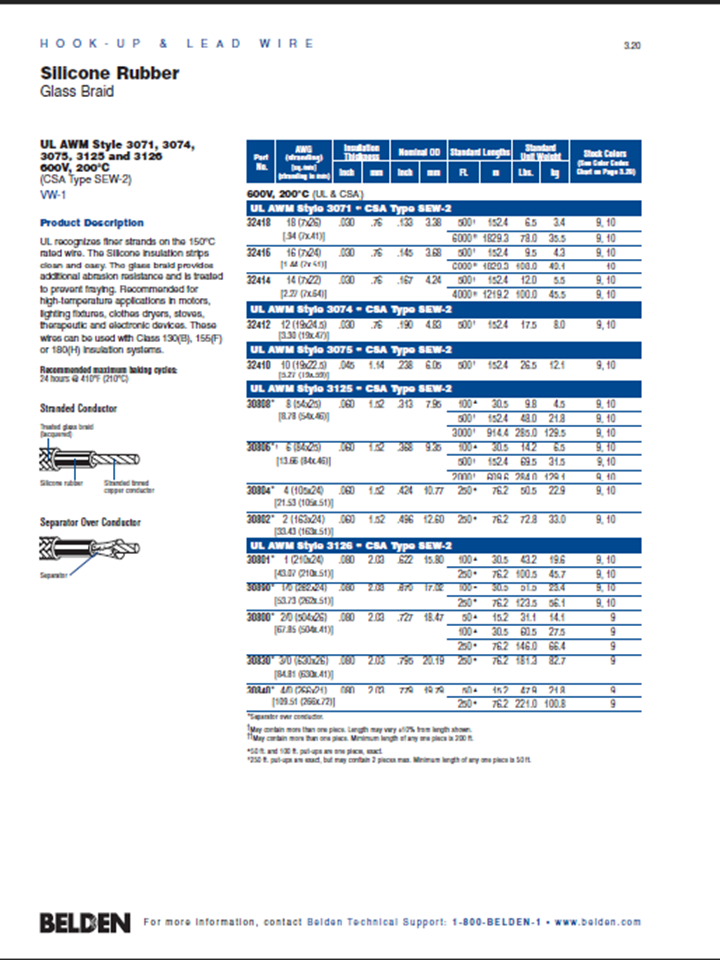

UL AWM Style 3071, 3074,
3075, 3125 and 3126
600V, 200°C
(CSA Type SEW-2)
VW-1
Product Description
UL recognizes finer strands on the 150°C
rated wire. The Silicone insulation strips
clean and easy. The glass braid provides
additional abrasion resistance and is treated
to prevent fraying. Recommended for
high-temperature applications in motors,
lighting fixtures, clothes dryers, stoves,
therapeutic and electronic devices. These
wires can be used with Class 130(B), 155(F)
or 180(H) insulation systems.
Recommended maximum baking cycles:
24 hours @ 410°F (210°C)
Numero de Parte Belden: 32418, 32416, 32414, 32412, 32410, 30808, 30806, 30804, 30802, 30801, 30890, 30800, 30830, 30840
