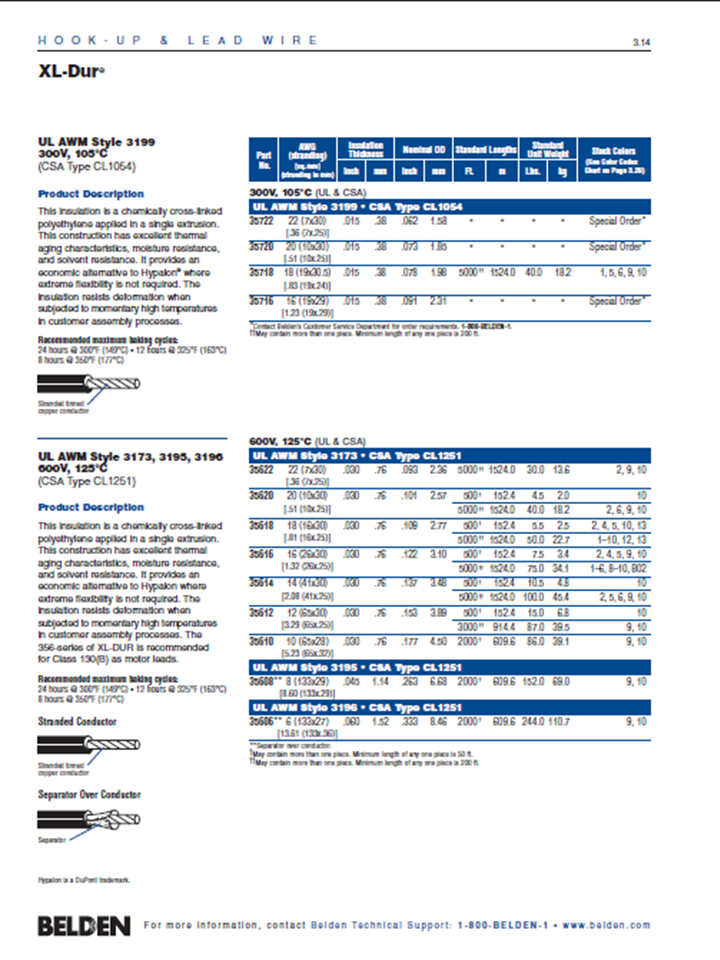

HOOK UP & LEAD WIRE, UL AWM Style 3199 300V, 105°C │

UL AWM Style 3199

300V, 105°C
(CSA Type CL1054)
Product Description
This insulation is a chemically cross-linked
polyethylene applied in a single extrusion.
This construction has excellent thermal
aging characteristics, moisture resistance,
and solvent resistance. It provides an
economic alternative to Hypalon® where
extreme flexibility is not required. The
insulation resists deformation when
subjected to momentary high temperatures
in customer assembly processes.
Recommended maximum baking cycles:
24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
8 hours @ 350°F (177°C)

UL AWM Style 3173, 3195, 3196
600V, 125°C
(CSA Type CL1251)
Product Description
This insulation is a chemically cross-linked
polyethylene applied in a single extrusion.
This construction has excellent thermal
aging characteristics, moisture resistance,
and solvent resistance. It provides an
economic alternative to Hypalon where
extreme flexibility is not required. The
insulation resists deformation when
subjected to momentary high temperatures
in customer assembly processes. The
356-series of XL-DUR is recommended
for Class 130(B) as motor leads.
Recommended maximum baking cycles:
24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
8 hours @ 350°F (177°C)

Numero de Parte Belden: 35722, 35720, 35718, 35716, 35622, 35620, 35618, 35616, 35614, 35612, 35610
