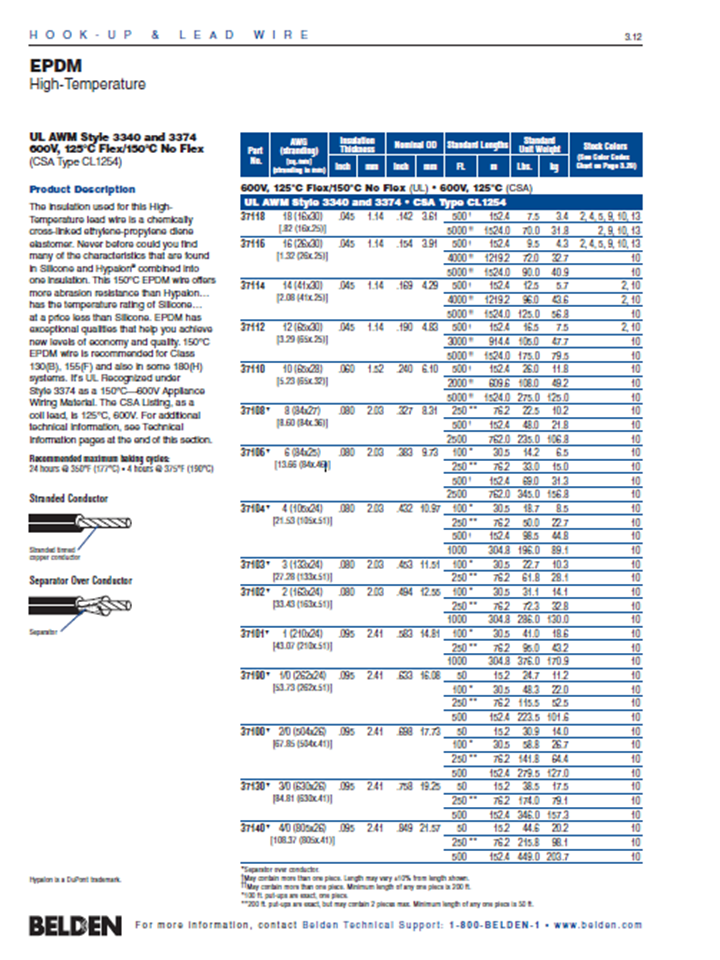

UL AWM Style 3340 and 3374
600V, 125°C Flex/150°C No Flex
(CSA Type CL1254)
Product Description
The insulation used for this High-
Temperature lead wire is a chemically
cross-linked ethylene-propylene diene
elastomer. Never before could you find
many of the characteristics that are found
in Silicone and Hypalon® combined into
one insulation. This 150°C EPDM wire offers
more abrasion resistance than Hypalon…
has the temperature rating of Silicone…
at a price less than Silicone. EPDM has
exceptional qualities that help you achieve
new levels of economy and quality. 150°C
EPDM wire is recommended for Class
130(B), 155(F) and also in some 180(H)
systems. It’s UL Recognized under
Style 3374 as a 150°C—600V Appliance
Wiring Material. The CSA Listing, as a
coil lead, is 125°C, 600V. For additional
technical information, see Technical
Information pages at the end of this section.
Recommended maximum baking cycles:
24 hours @ 350°F (177°C) • 4 hours @ 375°F (190°C)
Numero de Parte Belden: 37118, 37116, 37114, 37112, 37110, 37108, 37106, 37104, 37103, 37102, 37101, 37190, 37100, 37130, 37140
