Overall Beldfoil Shield Multiple Drain Wires

Overall Beldfoil Shield Multiple Drain Wires

Multiconductor cable Overall Beldfoil Shield Multiple Drain Wires

B8729

Somos Especialistas en Cables. Distribuimos en toda la Republica Mexicana: Innovative Trade Center, Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Tijuana, B. C. www.innovative.com.mx

Multiconductor cable Overall Beldfoil Shield Multiple Drain Wires

BELDEN
ESPECIFICACIONES DE Multiconductor cable
1. CONDUCTORES: 22 AWG trenzado (19×34) de cobre estañado, conductores cableados
2. Aislamiento: Polietileno
3. CHAQUETA: PVC blanco
4. Blindaje: escudo Beldfoil total (100%), 23 AWG sólido y 25 AWG de drenaje
5. Normas: NEC: CM, CL3
6. CLASIFICACIÓN: 300 V, 75 ° C

Multiconductor cable Overall Beldfoil Shield Multiple Drain Wires

BELDEN

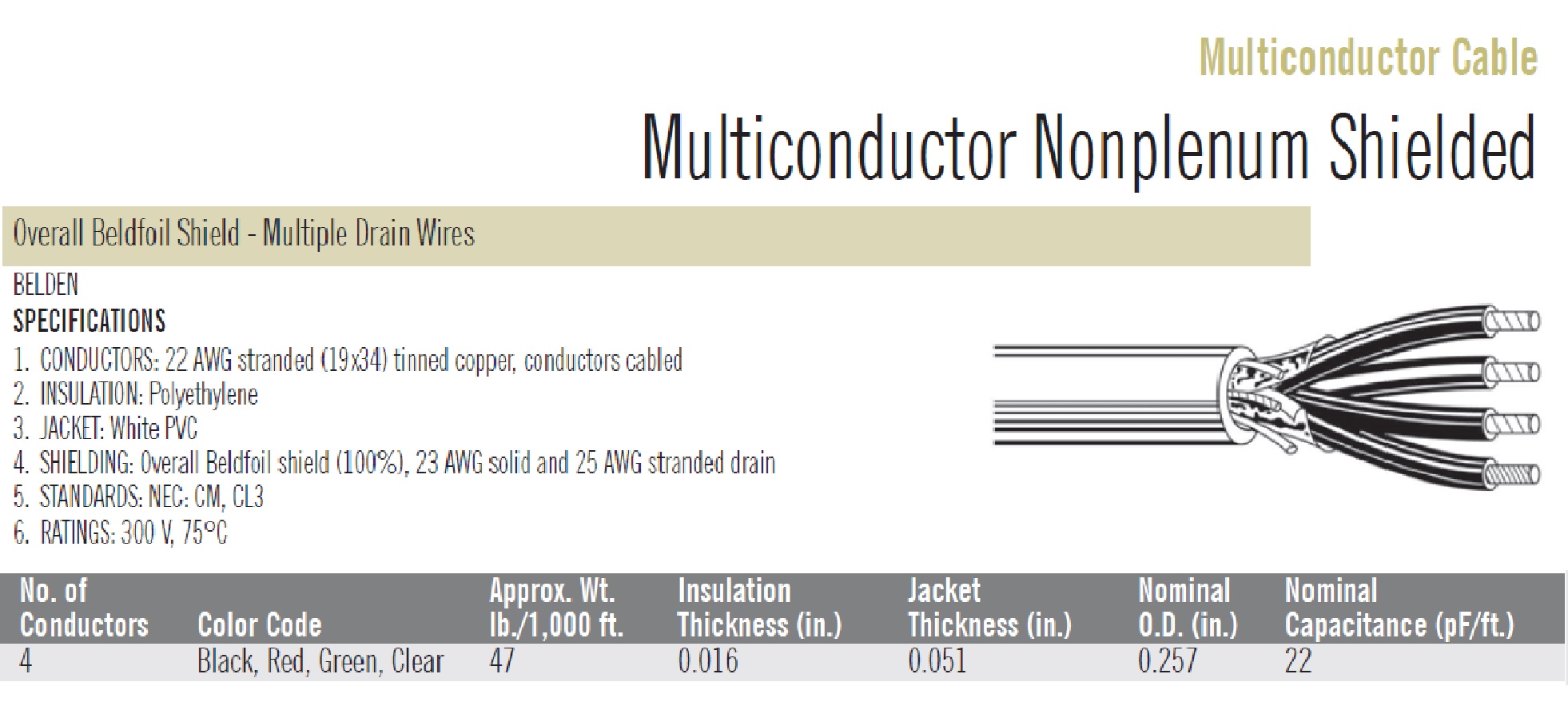

SPECIFICATIONS Multiconductor cable
1. CONDUCTORS: 22 AWG stranded (19×34) tinned copper, conductors cabled
2. INSULATION: Polyethylene
3. JACKET: White PVC
4. SHIELDING: Overall Beldfoil shield (100%), 23 AWG solid and 25 AWG stranded drain
5. STANDARDS: NEC: CM, CL3
6. RATINGS: 300 V, 75°C

B8729
