Panduct Type HS Hinged Cover Solid Wall Raceway
HS1.5X2LG6NM, HS1.5X3LG6NM, HS2X2LG6NM, HS2X3LG6NM, HS2X4LG6NM, HS3X3LG6NM, HS3X4LG6NM, HS4X4LG6NM
Panduct Type HS Hinged Cover Solid Wall Raceway
Contactenos en: www.innovative.com.mx Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Innovative Trade Center Tijuana, B. C. Distribuimos en toda la republica
Panduct ® tipo HS con bisagras tapa pared sólida Raceway
• Material: PVC libre de plomo
• Clasificación de temperatura de uso continuo: 122° F (50° C) Inflamabilidad • UL94 V-0 clasificación
• Cumple con el requisito de sección 13.3.1 NFPA 79-2007 para el material ignífugo
• Longitud de la base y la cubierta es de 6 pies (base y tapa vendido por separado)
• Diseño de pared sólida completamente incluye cables proporcionando máxima protección y estética
• Integrado con cubierta abisagrada diseño permite un fácil acceso a cableado sin la molestia de quitar y reinstalar la cubierta
• Dual-sided bisagra puede abrir hasta 100° desde cualquier flanco de base adhesiva para facilitar el acceso al canal
• Tapa retención bridas evitan cubierta deslizante cuando instalado en la base del conducto
• Marcador base permite una capacidad de carga cable completo en cableado ensambladuras del conducto como tes y esquinas
• Especialmente formulado libre de plomo material elimina la salud problemas asociados con el PVC que contiene plomo

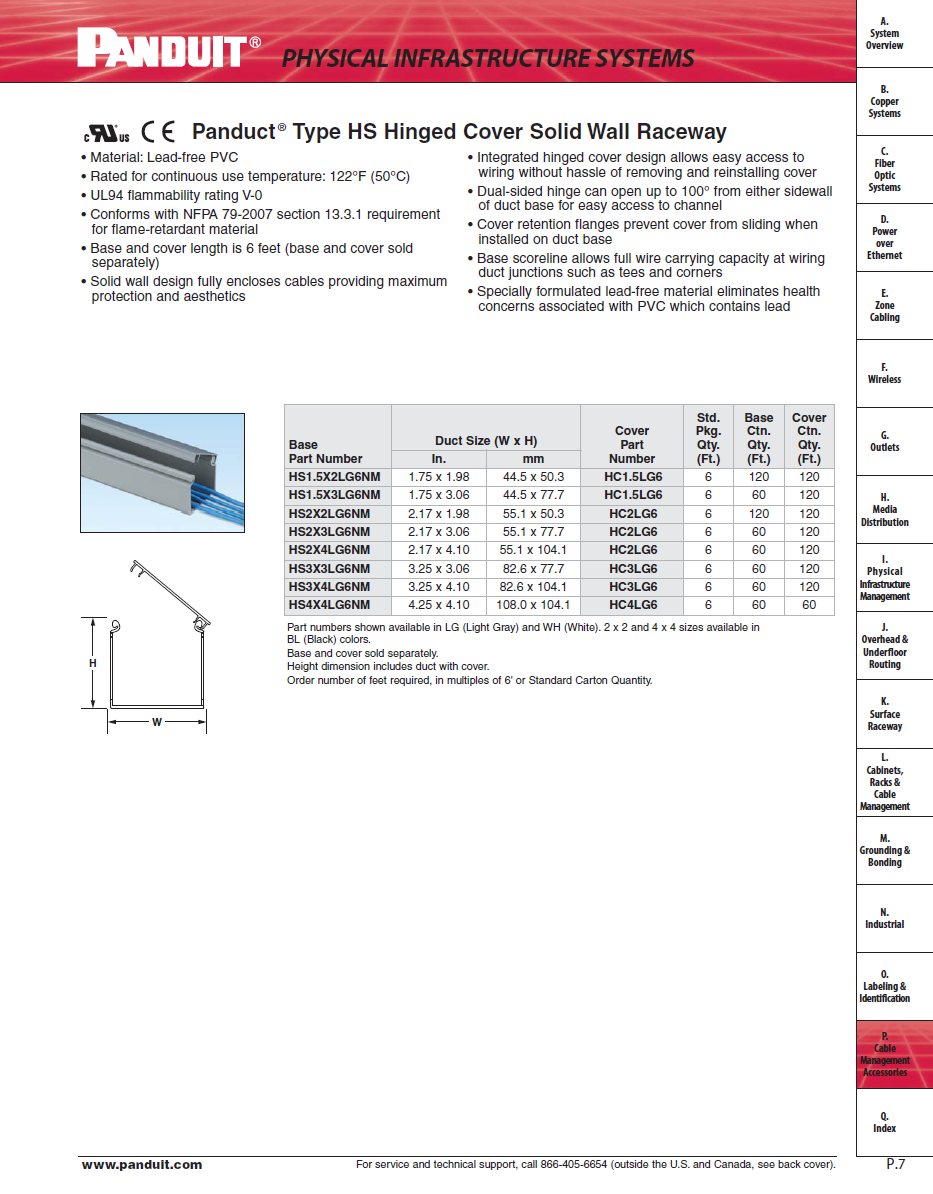

Panduct® Type HS Hinged Cover Solid Wall Raceway
• Material: Lead-free PVC
• Rated for continuous use temperature: 122°F (50°C)
• UL94 flammability rating V-0
• Conforms with NFPA 79-2007 section 13.3.1 requirement for flame-retardant material
• Base and cover length is 6 feet (base and cover sold separately)
• Solid wall design fully encloses cables providing maximum protection and aesthetics
• Integrated hinged cover design allows easy access to wiring without hassle of removing and reinstalling cover
• Dual-sided hinge can open up to 100° from either sidewall of duct base for easy access to channel
• Cover retention flanges prevent cover from sliding when installed on duct base
• Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners
• Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead
• Rated for continuous use temperature: 122°F (50°C)
• UL94 flammability rating V-0
• Conforms with NFPA 79-2007 section 13.3.1 requirement for flame-retardant material
• Base and cover length is 6 feet (base and cover sold separately)
• Solid wall design fully encloses cables providing maximum protection and aesthetics
• Integrated hinged cover design allows easy access to wiring without hassle of removing and reinstalling cover
• Dual-sided hinge can open up to 100° from either sidewall of duct base for easy access to channel
• Cover retention flanges prevent cover from sliding when installed on duct base
• Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners
• Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead
Numero de Parte PANDUIT:
HS1.5X2LG6NM, HS1.5X3LG6NM, HS2X2LG6NM, HS2X3LG6NM, HS2X4LG6NM, HS3X3LG6NM, HS3X4LG6NM, HS4X4LG6NM
