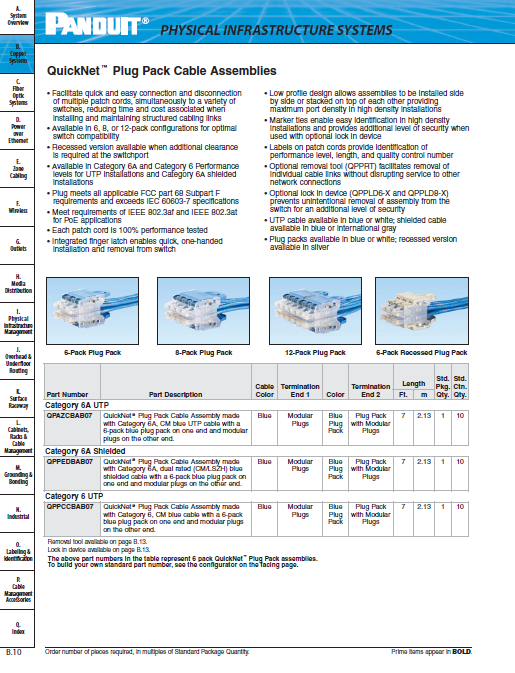

QuickNet ™ Plug Pack Cable Assemblies
• Facilitate quick and easy connection and disconnection
of multiple patch cords, simultaneously to a variety of
switches, reducing time and cost associated when
installing and maintaining structured cabling links
• Available in 6, 8, or 12-pack configurations for optimal
switch compatibility
• Recessed version available when additional clearance
is required at the switchport
• Available in Category 6A and Category 6 Performance
levels for UTP installations and Category 6A shielded
installations
• Plug meets all applicable FCC part 68 Subpart F
requirements and exceeds IEC 60603-7 specifications
• Meet requirements of IEEE 802.3af and IEEE 802.3at
for PoE applications
• Each patch cord is 100% performance tested
• Integrated finger latch enables quick, one-handed
installation and removal from switch
• Low profile design allows assemblies to be installed side
by side or stacked on top of each other providing
maximum port density in high density installations
• Marker ties enable easy identification in high density
installations and provides additional level of security when
used with optional lock in device
• Labels on patch cords provide identification of
performance level, length, and quality control number
• Optional removal tool (QPPRT) facilitates removal of
individual cable links without disrupting service to other
network connections
• Optional lock in device (QPPLD6-X and QPPLD8-X)
prevents unintentional removal of assembly from the
switch for an additional level of security
• UTP cable available in blue or white; shielded cable
available in blue or international gray
• Plug packs available in blue or white; recessed version
available in silver
Numero de Parte PANDUIT: QPAZCBAB07, QPPEDBAB07, QPPCCBAB07
