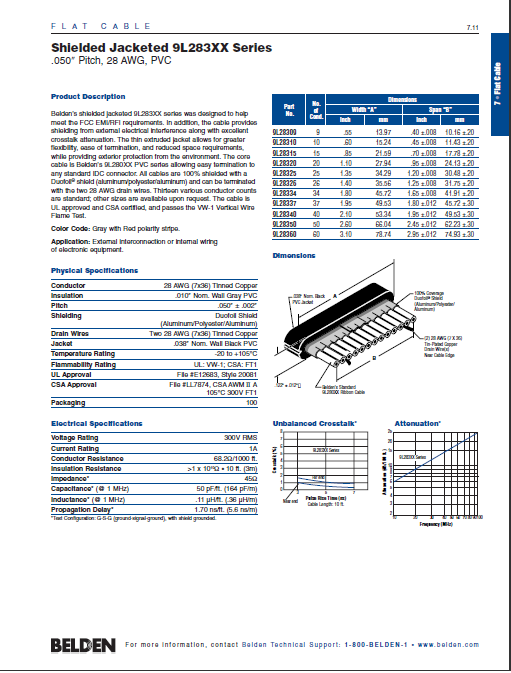

Shielded Jacketed 9L283XX Series

Shielded Jacketed 9L283XX Series
.050″ Pitch, 28 AWG, PVC

Product Description
Belden’s shielded jacketed 9L283XX series was designed to help
meet the FCC EMI/RFI requirements. In addition, the cable provides
shielding from external electrical interference along with excellent
crosstalk attenuation. The thin extruded jacket allows for greater
flexibility, ease of termination, and reduced space requirements,
while providing exterior protection from the environment. The core
cable is Belden’s 9L280XX PVC series allowing easy termination to
any standard IDC connector. All cables are 100% shielded with a
Duofoil® shield (aluminum/polyester/aluminum) and can be terminated
with the two 28 AWG drain wires. Thirteen various conductor counts
are standard; other sizes are available upon request. The cable is
UL approved and CSA certified, and passes the VW-1 Vertical Wire
Flame Test.
Color Code: Gray with Red polarity stripe.
Application: External interconnection or internal wiring
of electronic equipment.
Physical Specifications
Conductor 28 AWG (7×36) Tinned Copper
Insulation .010″ Nom. Wall Gray PVC
Pitch .050″ ± .002″
Shielding Duofoil Shield
(Aluminum/Polyester/Aluminum)
Drain Wires Two 28 AWG (7×36) Tinned Copper
Jacket .038″ Nom. Wall Black PVC
Temperature Rating -20 to +105°C
Flammability Rating UL: VW-1; CSA: FT1
UL Approval File #E12683, Style 20081
CSA Approval File #LL7874, CSA AWM II A
105°C 300V FT1
Packaging 100
Electrical Specifications
Voltage Rating 300V RMS
Current Rating 1A
Conductor Resistance 68.2Ω/1000 ft.
Insulation Resistance >1 x 1010Ω • 10 ft. (3m)
Impedance* 45Ω
Capacitance* (@ 1 MHz) 50 pF/ft. (164 pF/m)
Inductance* (@ 1 MHz) .11 μH/ft. (.36 μH/m)
Propagation Delay* 1.70 ns/ft. (5.6 ns/m)

Numero de Parte Belden: 9L28309, 9L28310, 9L28315, 9L28320, 9L28325, 9L28326, 9L28334, 9L28337, 9L28340, 9L28350, 9L28360
