Telecommunication Equipment Bonding Conductor TEBC Kits continued

Telecommunication Equipment Bonding Conductor TEBC Kits continued

GJS6120U, GJS6180U, HDW1/4-KT, HDW3/8-KT, HDW1/4-A-KT, HDW3/8-A-KT

Telecommunication Equipment Bonding Conductor TEBC Kits continued

Contactenos en: www.innovative.com.mx Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Innovative Trade Center Tijuana, B. C. Distribuimos en toda la republica

Telecommunication Equipment Bonding Conductor TEBC Kits continued

Tijuana, Tecate, Mexicali, Ensenada, Rosarito, La Paz, Los Cabos, San Luis Rio Colorado

• Bonos del rack o gabinete para las telecomunicaciones barra de puesta a tierra (TGB)
• Kit de puente con ambos extremos fábrica terminado a proporcionar una solución de perno
• Kit de puente con la fábrica de uno de los extremos termina en Coloque en el rack o gabinete; extremo libre acomoda requisitos de longitud única
• Diseñado para cumplir con nosotros e internacional requisitos de puesta a tierra

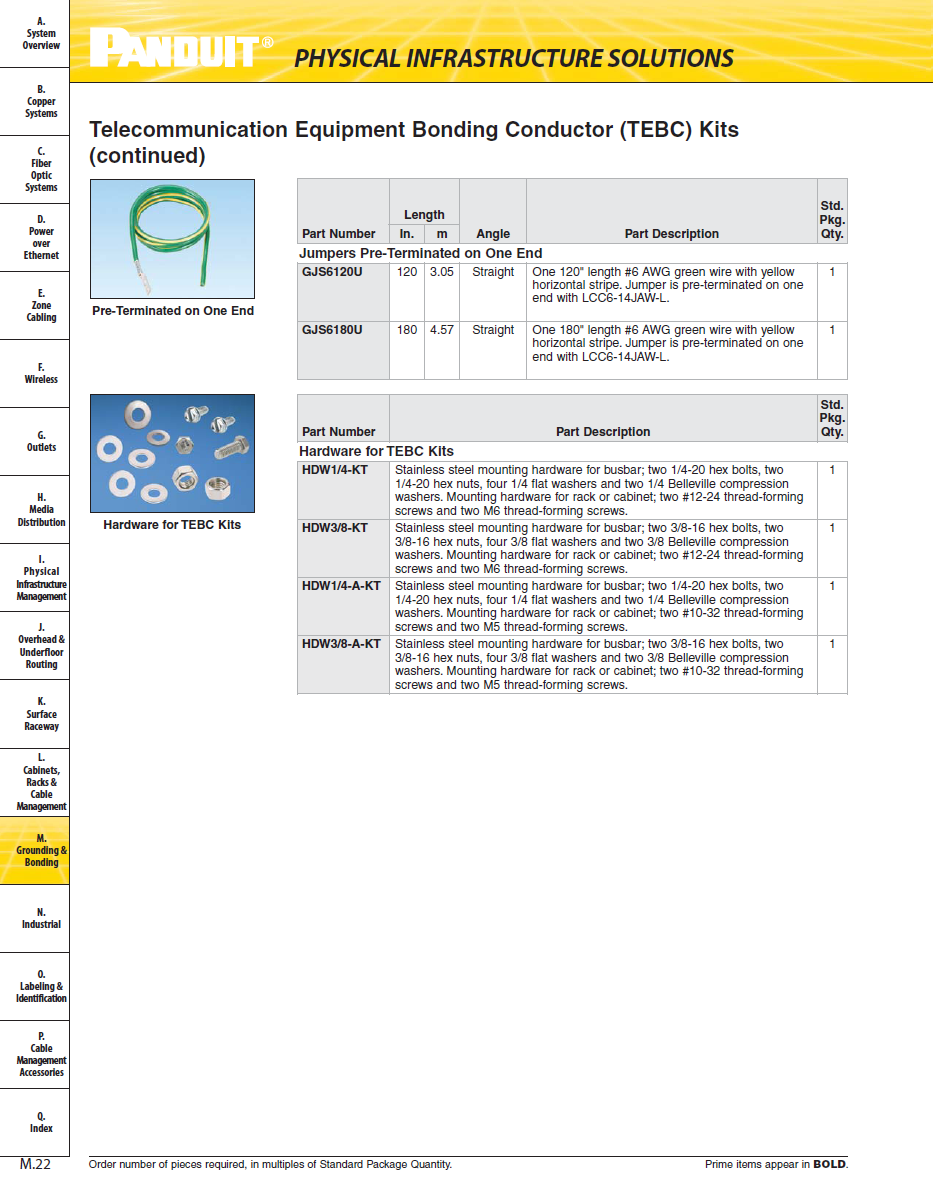

Telecommunication Equipment Bonding Conductor (TEBC) Kits

• Bonds the rack or cabinet to the telecommunications grounding busbar (TGB)
• Jumper kit available with both ends factory terminated to provide a bolt-on solution
• Jumper kit available with one end factory terminated to attach to the rack or cabinet; free end accommodates unique length requirements
• Engineered to comply with US and international grounding requirements

Numero de Parte PANDUIT:

GJS6120U:

• Uno 120″ longitud #6 verde cable AWG con amarillo raya horizontal. El puente es conectorizado en uno termina con LCC6-14JAW-L.
• One 120″ length #6 AWG green wire with yellow horizontal stripe. Jumper is pre-terminated on one end with LCC6-14JAW-L.

GJS6180U:

• Un 180″ longitud #6 verde cable AWG con amarillo raya horizontal. El puente es conectorizado en uno termina con LCC6-14JAW-L.
• One 180″ length #6 AWG green wire with yellow horizontal stripe. Jumper is pre-terminated on one end with LCC6-14JAW-L.

HDW1/4-KT:

• Acero inoxidable montaje de barra colectora; hexagonal de 1/4-dos 20 tornillos, dos tuercas hexagonales de 1/4-20, 1/4 plana arandelas y dos 1/4 compresión de Belleville arandelas. Montaje para rack o gabinete; dos #12-24 roscar-formación tornillos y dos tornillos de formadores de rosca M6.
• Stainless steel mounting hardware for busbar; two 1/4-20 hex bolts, two 1/4-20 hex nuts, four 1/4 flat washers and two 1/4 Belleville compression washers. Mounting hardware for rack or cabinet; two #12-24 thread-forming
  screws and two M6 thread-forming screws.

HDW3/8-KT:

• Acero inoxidable montaje de barra colectora; hexagonal de 3/8-dos 16 tornillos, dos tuercas hexagonales de 3/8-16, 4 3/8 plana arandelas y dos compresión 3/8 Belleville arandelas. Montaje para rack o gabinete; dos #12-24 roscar-formación tornillos y dos tornillos de formadores de rosca M6.
• Stainless steel mounting hardware for busbar; two 3/8-16 hex bolts, two 3/8-16 hex nuts, four 3/8 flat washers and two 3/8 Belleville compression washers. Mounting hardware for rack or cabinet; two #12-24 thread-forming
  screws and two M6 thread-forming screws.

HDW1/4-A-KT:

• Acero inoxidable montaje de barra colectora; hexagonal de 1/4-dos 20 tornillos, dos tuercas hexagonales de 1/4-20, 1/4 plana arandelas y dos 1/4 compresión de Belleville arandelas. Montaje para rack o gabinete; dos #10-32 roscar-formación tornillos y dos tornillos M5 formadores de rosca.
• Stainless steel mounting hardware for busbar; two 1/4-20 hex bolts, two 1/4-20 hex nuts, four 1/4 flat washers and two 1/4 Belleville compression washers. Mounting hardware for rack or cabinet; two #10-32 thread-forming
  screws and two M5 thread-forming screws.

HDW3/8-A-KT:

• Acero inoxidable montaje de barra colectora; hexagonal de 3/8-dos 16 tornillos, dos tuercas hexagonales de 3/8-16, 4 3/8 plana arandelas y dos compresión 3/8 Belleville arandelas. Montaje para rack o gabinete; dos #10-32 roscar-formación tornillos y dos tornillos M5 formadores de rosca.
• Stainless steel mounting hardware for busbar; two 3/8-16 hex bolts, two 3/8-16 hex nuts, four 3/8 flat washers and two 3/8 Belleville compression washers. Mounting hardware for rack or cabinet; two #10-32 thread-forming
  screws and two M5 thread-forming screws.
