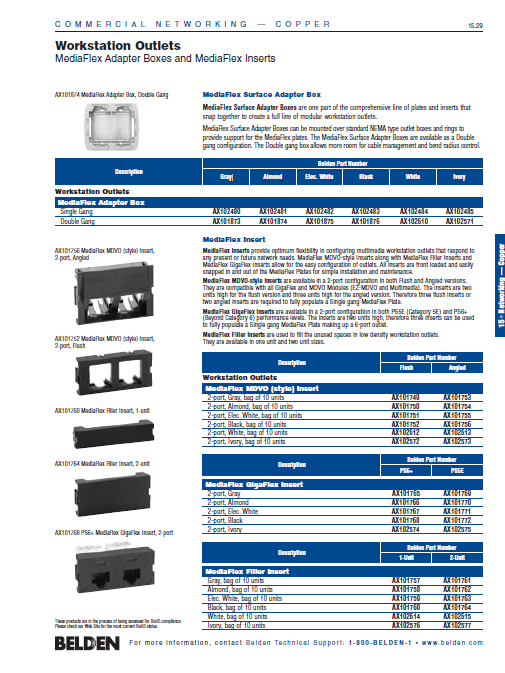

Workstation Outlets
MediaFlex Adapter Boxes and MediaFlex Inserts

MediaFlex Surface Adapter Box
MediaFlex Surface Adapter Boxes are one part of the comprehensive line of plates and inserts that
snap together to create a full line of modular workstation outlets.
MediaFlex Surface Adapter Boxes can be mounted over standard NEMA type outlet boxes and rings to
provide support for the MediaFlex plates. The MediaFlex Surface Adapter Boxes are available as a Double
gang configuration. The Double gang box allows more room for cable management and bend radius control.

MediaFlex Insert
MediaFlex Inserts provide optimum flexibility in configuring multimedia workstation outlets that respond to
any present or future network needs. MediaFlex MDVO-style Inserts along with MediaFlex Filler Inserts and
MediaFlex GigaFlex Inserts allow for the easy configuration of outlets. All inserts are front loaded and easily
snapped in and out of the MediaFlex Plates for simple installation and maintenance.
MediaFlex MDVO-style Inserts are available in a 2-port configuration in both Flush and Angled versions.
They are compatible with all GigaFlex and MDVO Modules (EZ-MDVO and Multimedia). The inserts are two
units high for the flush version and three units high for the angled version. Therefore three flush inserts or
two angled inserts are required to fully populate a Single gang MediaFlex Plate.
MediaFlex GigaFlex Inserts are available in a 2-port configuration in both PS5E (Category 5E) and PS6+
(Beyond Category 6) performance levels. The inserts are two units high, therefore three inserts can be used
to fully populate a Single gang MediaFlex Plate making up a 6-port outlet.
MediaFlex Filler Inserts are used to fill the unused spaces in low density workstation outlets.
They are available in one unit and two unit sizes.

Numero de Parte Belden: AX102480, AX102481, AX102482, AX102483, AX102484, AX102485, AX101873, AX101874, AX101875, AX101876, AX102610, AX102571, AX101749, AX101753, AX101750, AX101754, AX101751, AX101755, AX101752, AX101756, AX102612, AX102613, AX102572, AX102573, AX101765, AX101769, AX101766, AX101770, AX101767, AX101771 AX101768, AX101772, AX102574, AX102575, AX101757, AX101761, AX101758, AX101762, AX101759, AX101763, AX101760, AX101764, AX102614, AX102615, AX102576, AX102577,
