WYR-GRID ® CABLE AÉREO BANDEJA ROUTING SYSTEM
PANDUIT proporciona un sistema de bandeja de cable aéreo que minimiza el tiempo de instalación y simplifica el cable gestión de contratistas y técnicos de la red.La red Wyr ® arriba bandeja encaminamiento de Cable Sistema está diseñado para dirigir y gestionar los cables de datos cobre, premisa distribución cables de fibra óptica, y los cables de alimentación dentro de los centros de datos, edificios conectados y las aplicaciones de automatización industrial.
Características innovadoras proporcionan montaje rápido y fácil que reducen el tiempo de instalación a la mitad del típico cable sistemas canasta o escalera, minimizando así los costes de instalación.
•WyR-grid ® disponen de vías en cuatro anchuras: 12 pulgadas (305mm), 18 pulgadas (457mm), 24″(610mm), y 30 pulgadas (762mm)
•WyR-grid ® sistema incorpora no integral complemento en las paredes laterales que minimizar la especificación los requisitos y se ofrecen en tres diferentes alturas: 2″(50mm), 4″ (102mm) y 6″(152mm)
•WyR-grid ® conectores de empalme tienen una integral tornillo de unión que crea un mecánico-eléctrico vínculo entre secciones de vía de bandeja de cable
•WyR-grid ® cascadas se ofrecen en dos diferentes configuraciones que se adhieren a todas las secciones de vía 12 pulgadas (305mm), 18 pulgadas (457mm), 24″(610mm), y 30 pulgadas (762mm) para facilitar el control de radio de la curva y administración de cables
•WyR-grid ® ofrecen en diversos soportes anchos para acomodar las vías: 12 pulgadas (305mm), 18 pulgadas (457mm), 24″(610mm) y 30 pulgadas (762mm); tiene una retención de quick-clip integral; acomodar varilla roscada 1/2″ o 12 mm WYR-GRID ® CABLE AÉREO BANDEJA ROUTING SYSTEM Wyr-red ® Overhead Cable bandeja Routing System puede fácilmente acomodar las vías ® FiberRunner en la aplicación para proporcionan un cobre segregado y fibra solución de cableado.
Como parte de la solución de Panduit Data Centers, la red Wyr ® El sistema ofrece integración de sistema seguro, confiable y riesgo gestión dentro de la infraestructura física.
WYR GRID OVERHEAD CABLE TRAY ROUTING SYSTEM

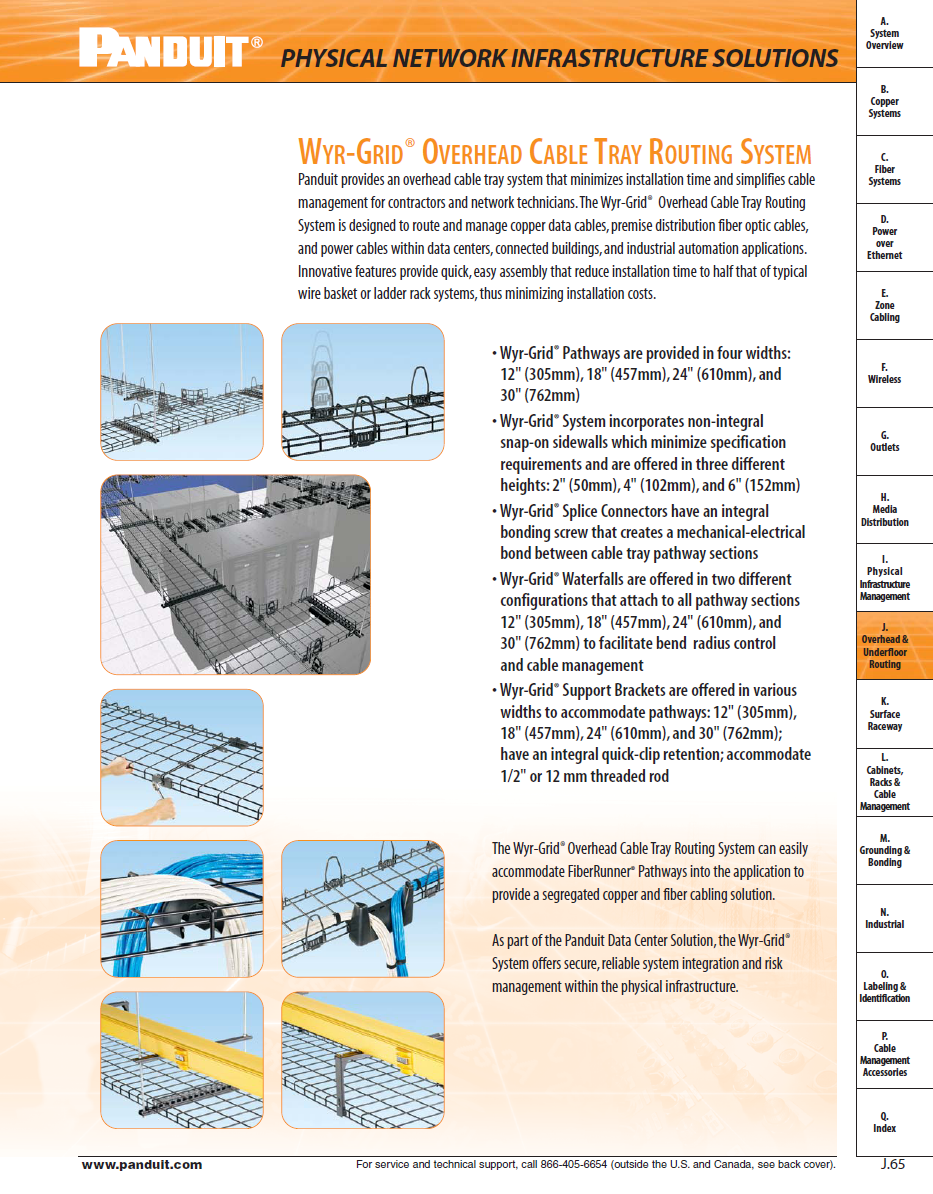

Panduit provides an overhead cable tray system that minimizes installation time and simplifies cable management for contractors and network technicians.The Wyr-Grid® Overhead Cable Tray Routing System is designed to route and manage copper data cables, premise distribution fiber optic cables, and power cables within data centers, connected buildings, and industrial automation applications.
Innovative features provide quick, easy assembly that reduce installation time to half that of typical wire basket or ladder rack systems, thus minimizing installation costs.
•Wyr-Grid® Pathways are provided in four widths: 12″ (305mm), 18″ (457mm), 24″ (610mm), and 30″ (762mm)
•Wyr-Grid® System incorporates non-integral snap-on sidewalls which minimize specification requirements and are offered in three different heights: 2″ (50mm), 4″ (102mm), and 6″ (152mm)
•Wyr-Grid® Splice Connectors have an integral bonding screw that creates a mechanical-electrical bond between cable tray pathway sections
•Wyr-Grid®Waterfalls are offered in two different configurations that attach to all pathway sections 12″ (305mm), 18″ (457mm), 24″ (610mm), and 30″ (762mm) to facilitate bend radius control and cable management
•Wyr-Grid® Support Brackets are offered in various widths to accommodate pathways: 12″ (305mm), 18″ (457mm), 24″ (610mm), and 30″ (762mm); have an integral quick-clip retention; accommodate 1/2″ or 12 mm threaded rod
WYR-GRID® OVERHEAD CABLE TRAY ROUTING SYSTEM The Wyr-Grid® Overhead Cable Tray Routing System can easily accommodate FiberRunner® Pathways into the application to provide a segregated copper and fiber cabling solution.
As part of the Panduit Data Center Solution, the Wyr-Grid® System offers secure, reliable system integration and risk
management within the physical infrastructure.
Innovative features provide quick, easy assembly that reduce installation time to half that of typical wire basket or ladder rack systems, thus minimizing installation costs.
•Wyr-Grid® Pathways are provided in four widths: 12″ (305mm), 18″ (457mm), 24″ (610mm), and 30″ (762mm)
•Wyr-Grid® System incorporates non-integral snap-on sidewalls which minimize specification requirements and are offered in three different heights: 2″ (50mm), 4″ (102mm), and 6″ (152mm)
•Wyr-Grid® Splice Connectors have an integral bonding screw that creates a mechanical-electrical bond between cable tray pathway sections
•Wyr-Grid®Waterfalls are offered in two different configurations that attach to all pathway sections 12″ (305mm), 18″ (457mm), 24″ (610mm), and 30″ (762mm) to facilitate bend radius control and cable management
•Wyr-Grid® Support Brackets are offered in various widths to accommodate pathways: 12″ (305mm), 18″ (457mm), 24″ (610mm), and 30″ (762mm); have an integral quick-clip retention; accommodate 1/2″ or 12 mm threaded rod
WYR-GRID® OVERHEAD CABLE TRAY ROUTING SYSTEM The Wyr-Grid® Overhead Cable Tray Routing System can easily accommodate FiberRunner® Pathways into the application to provide a segregated copper and fiber cabling solution.
As part of the Panduit Data Center Solution, the Wyr-Grid® System offers secure, reliable system integration and risk
management within the physical infrastructure.
